Web applications that are created with Web App are optimized for display on smartphones an tablets as well as on classic desktop PCs. The responsive behavior affects:
-
the page layout
-
the appearance of checkboxes
-
the display of information within a list component / grid component
-
the display of master/detail components

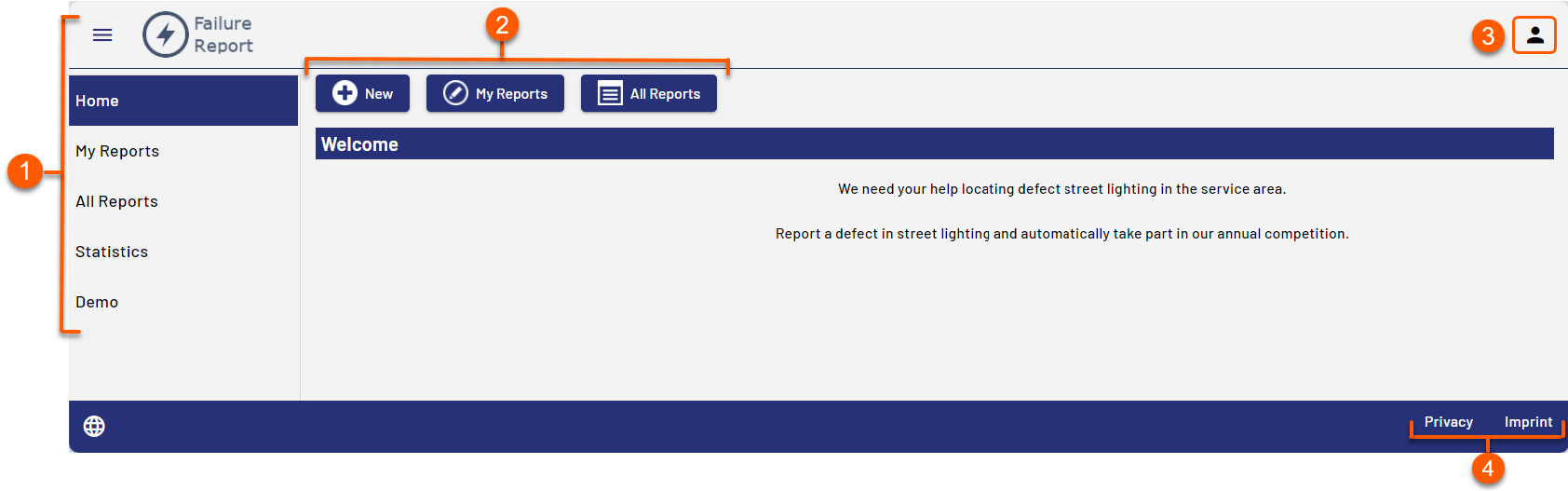

Page Layout on a Desktop PC
|
1 |
The menu is created automatically using the components. Each component creates a menu item. |
|
2 |
Buttons for actions |
|
3 |
User menu Note: Selecting the icon displays the logged-in user and the functions for changing the password and logging out. The user menu is displayed only for Web Apps with the Authorization Flow Resource Owner Password Flow. |
|
4 |
Links to the data protection statement and the imprint. Links are generated automatically and refer to the files |

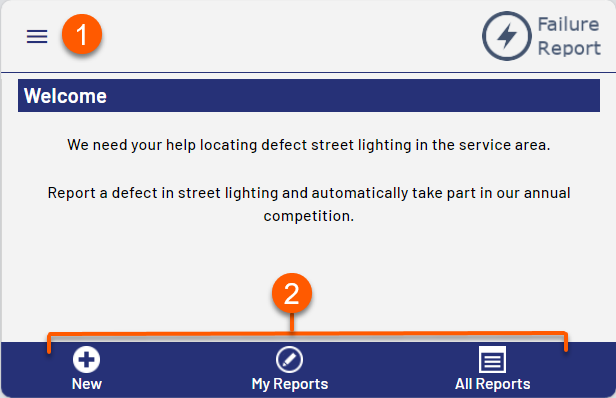

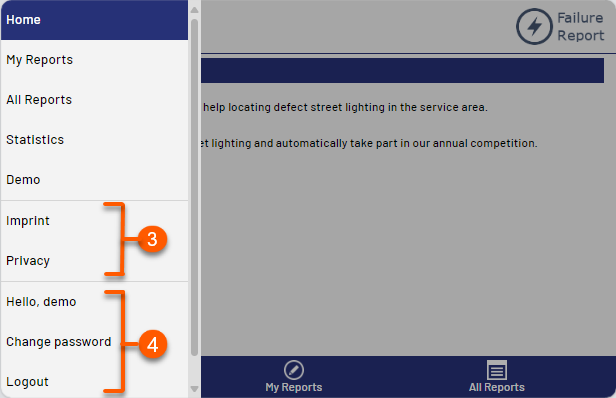

Mobile Page Layout
|
1 |
Menu, is created automatically using the components. Each component creates a menu item. In mobile mode the menu becomes visible when you click on the menu button. |
|
2 |
Buttons for actions |
|
3 |
Links to the data protection statement and the imprint. Links are generated automatically and refer to the files |
|
4 |
Details for the logged-in user and options for changing the password and logging out |
