Operation: List Savepoints | X4Documentation

The List Savepoints operation generates a list of the Savepoints set in a process.

Input

The adapter does not expect any input.

Output

The adapter creates an XML document as output:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Savepoints>
    <Savepoint id="2be2eab5-317e-4c02-9896-7de77c4fa217">
        <PID>1675418719043677647</PID>
        <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID>
        <Repository>1</Repository>
        <Project>SavePoints</Project>
        <Process>Processes/SaveMe.wrf</Process>
        <NextAction_ID>2</NextAction_ID>
    </Savepoint>
    <Savepoint id="72541d1c-fb40-433a-9cd3-677d8cdf814f">
        <PID>1675418719043677647</PID>
        <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID>
        <Repository>1</Repository>
        <Project>SavePoints</Project>
        <Process>Processes/SaveMe.wrf/SaveMePrivateSubprocess.wrf</Process>
        <NextAction_ID>1</NextAction_ID>
    </Savepoint>
    <Savepoint id="e2c06c03-1d66-4bdf-9f15-616ee9e8ce8b">
        <PID>1675418719043677647</PID>
        <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID>
        <Repository>1</Repository>
        <Project>SavePoints</Project>
        <Process>Processes/SaveMeSubprocess.wrf</Process>
        <NextAction_ID>3</NextAction_ID>
    </Savepoint>
</Savepoints>

The following elements can be contained in the output:

Element	Description
`Savepoint`	The `id` attribute specifies the UUID of the savepoint.
`PID`	Process ID Note: There are two scenarios when retrieving the PID: Scenario 1 Savepoints are always assigned the PID of the root process when the process containing a savepoint is called by the root process. This scenario is illustrated in the output shown above. Here, the PIDs for all retrieved savepoints are identical. Scenario 2 If the process with the savepoint is not called with the root process, the PID of the process with the savepoint is used. Example of scenario 2: <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <Savepoints> <Savepoint id="2be2eab5-317e-4c02-9896-7de77c4fa217"> <PID>1675418719043677647</PID> <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID> <Repository>1</Repository> <Project>SavePoints</Project> <Process>Processes/SaveMe.wrf</Process> <NextAction_ID>2</NextAction_ID> <Savepoint id="44d7e9b5-5fa2-403e-8645-dee669dc69d0"> <PID>1675418719054967421</PID> <PUID>88ffaa69-92e7-43d4-9ffc-3d36a2a50c2b</PUID> <Repository>1</Repository> <Project>SavePoints</Project> <Process>Processes/SaveMeSubprocess.wrf</Process> <NextAction_ID>3</NextAction_ID> </Savepoint> </Savepoints>
`PUID`	UUID of the process with which the savepoints were read Note: For Savepoints created with an X4 version prior to 7.3, only the PID is output, not the PUID.
`Repository`	The workspace where the project is stored
`Project`	Name of the project that contains the Technical Process
`Process`	Name of the Technical Process in which the savepoints are set

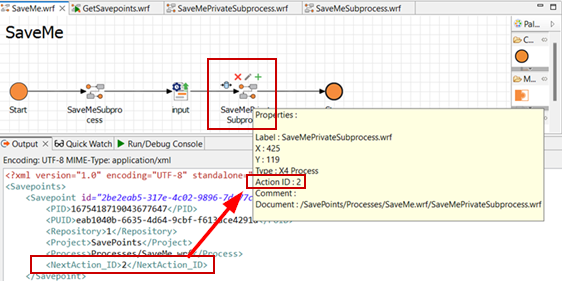

`NextAction_ID`	The action ID of the element that follows the savepoint that has been set in the process named in the output. Example of the first savepoint from the output shown above:
