Manuelle Installation

The BAM Logging adapter requires you to configure the database and manually install the adapter.

How to configure the database

1. In the <server_directory>/configurations folder, create the following file: bam_log_configuration.xml.

2. Insert the following content:

   XML

   <?xml version="1.0"?>
   <Configuration>
   	<ConnectionString>JDBC-CONNECTION</ConnectionString>
   	<UserName>USERNAME</UserName>
   	<Password>PASSWORD</Password>
   	<KeepLogs>
   		<Duration>1</Duration>
   		<TimeUnit>DAYS</TimeUnit>
   	</KeepLogs>
   	<RunCleanUp>
   		<Duration>1</Duration>
   		<TimeUnit>HOURS</TimeUnit>
   	</RunCleanUp>
   </Configuration>





3. Save the bam_log_configuration.xml file.

How to manually install the adapter

1. Unpack the ZIP folder of the adapter.

2. Copy the adapter folder into the following folder: <server_directory>\wildfly\modules\de\softproject\x4\adapter.

3. Make sure that the <resource-root path="" /> paths in the <resources> element in the module.xml file in the <server_directory>\wildfly\modules\de\softproject\x4\adapter\<name_of_the_adapter>\main folder match the names of the *.jar files.
   Example according to the BAM Log adapters:

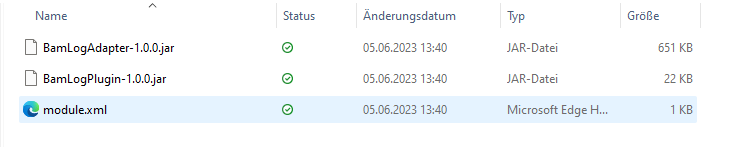

   1. Names of the *.jar files:

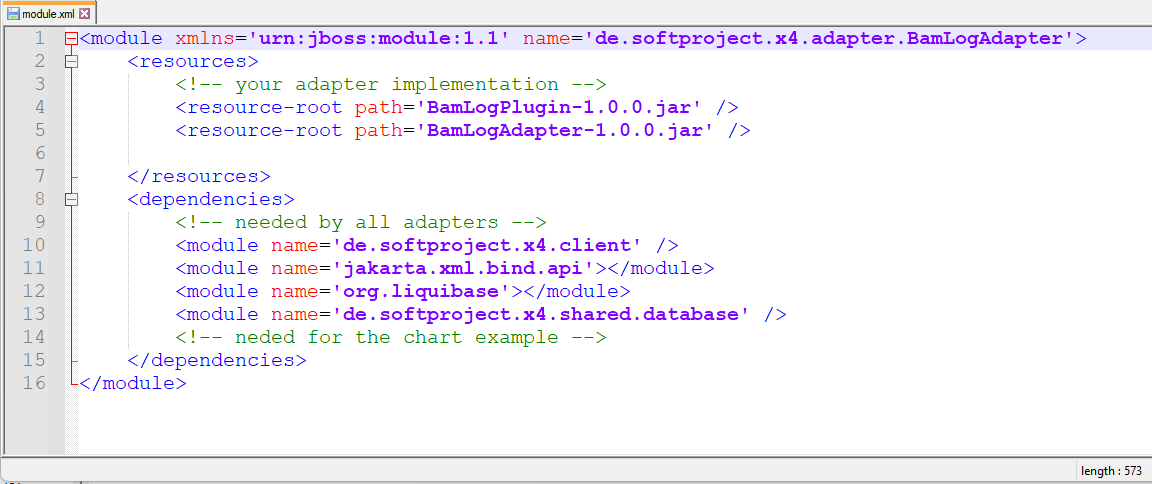

   2. Contents of the module.xml file:



4. Insert the name of the adapter in the module.xml file in the <server_directory>\wildfly\modules\de\softproject\plugins\main  folder:

   1. Open the module.xml file in the <server_directory>\wildfly\modules\de\softproject\plugins\main folder.

   2. Copy the adapter name into the <dependencies> tag:

      <module name="de.softproject.x4.adapter.<name_of_the_adapter>" export="true"/>

   3. Save the module.xml file.

5. Start Keycloak, the X4 Server, and the X4 Designer.

You can now choose and use the adapter in the X4 Designer.
