Rule


With Rule process components, you map decision rules within a Business Process. The rules to be applied are defined within decision tables (.rule) according to DMN 1.1. The rules can be checked automatically and the results are returned to the Business Process for further processing.

Note:

DMN is a standard for modeling decisions in Business Processes. The DMN standard also defines the Simple Expression Language (S-FEEL), a formal expression language used to define decision logic.

DMN 1.1 with S-FEEL is available online at https://www.omg.org/spec/DMN/1.1/.

Properties

Label

Label of the icon in the process diagram

Creating and defining rules

Warning:

  • Default Integer and Decimal values cannot be empty.

  • For Integer and Decimal types, it is not possible to check whether the value is empty.

To map rules for decisions in Business Processes, you use Rule process components when modeling the Business Process. You can then link these Rule process components with a decision table (.rule) in which you define the rules.

Note:

You can concatenate any number of decision tables in a Business Process. Output values of one table are thus converted into input values of the following table. This allows complex decision trees to be modeled with corresponding branches.

Creating decision tables (.rule)

You create decision tables (.rule) below the Business Process using the context menu New > Rules or the toolbar Add.png > Add Rules.

After creation, the decision table is opened in the X4 Designer.

Defining rules

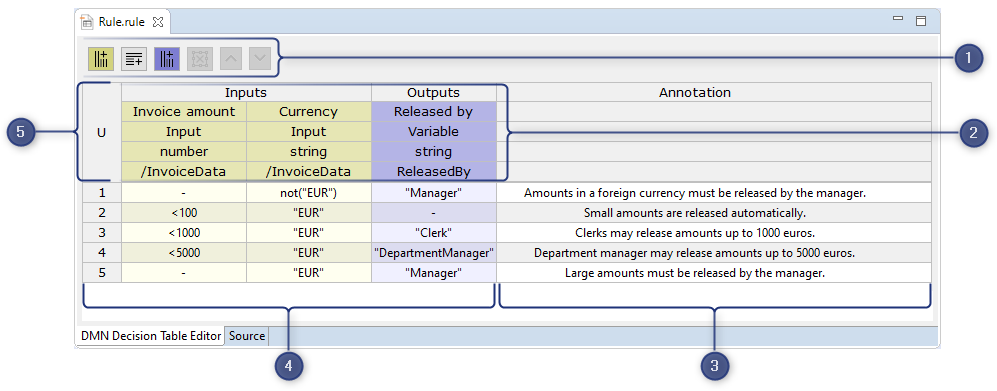

You define rules in the decision table (.rule) using the following sections of the editor.

No.

Element

Description

1

Toolbar

Functions for editing decision tables, depending on context and selection

2

Header area

Settings for defining input and output. Multiple inputs and outputs are possible.

The following cells are available for defining the input and output:

  • Free text field for the column name

  • Input or output source

    • Input or Output: Input from the BPMN process or output to the BPMN process

    • Parameters: Select a parameter (only available for input)

    • Variable: Value stored in a variable (without spaces, e.g. ReleasBy)

    • Case State: Select a status

    • Case Feature: Select Business Data

    • Data Object: Select elements of a data object

  • Data type of the input or output (string, number , boolean)

  • Input path as a free text field or selection (depending on the input source) or name of the output or variable as a free text field or selection (depending on the output target)

3

Annotation

Free annotation that is not issued in the output

4

Rules

Rules for transforming inputs to outputs.

Rules are defined per line, with the order of the rows determining the order in which they are checked. A rule has at least one column for processing the input values (input) and at least one decision result (output).

The rules in the decision table are specified in the S-FEEL notation. This allows the decision logic to be described in natural, "business-friendly" language. At the same time, as a formal markup language with defined semantics, grammar and rules, it allows the interpretation and execution of values. S-FEEL can interpret strings, numbers, simple arithmetic operations, and simple comparison checks.

Please note:

  • Enclose strings in quotation marks, e.g. "Department Manager"

  • Use a period as a separator for decimal numbers, e.g. 5.1

  • If the value of a cell in the input column is not relevant to a rule, enter a - (minus) in the cell according to S-FEEL

  • A decision table can contain a Fallback rule that should always apply. For this purpose, all cells of the input columns of a Fallback rule include a - (minus).
    Whether a Fallback rule is useful and where to implement it in the verification order depends on the Hit Policy and the use case.

5

Hit Policy

Setting for selecting the results. This setting determines how many rules of a decision table can apply and how the results are output.

Note:

Rules can be defined so that the number and selection of results violates the Hit Policy. In this case, the rules or Hit Policy must be corrected, depending on the use case.

U (Unique): Only one rule can apply and exactly one result is returned.

Possible Hit Policy violation:

  • No applicable rule

  • Multiple applicable rules

F (First): One or more rules may apply, but only the first result is returned.

Please note the order of verification!

Possible Hit Policy violation:

  • No applicable rule

A (Any): One or more rules with the same result may apply, but only one result is returned.

Possible Hit Policy violation:

  • No applicable rule

  • Multiple applicable rules with different results

C (Collect): All applicable results are output without a fixed output order.

Possible Hit Policy violation:

No applicable rule

Decision table results

The finished BPMN process with the decision table can be validated in the X4 Designer, checked for errors, and run on the X4 Server.

Decision tables can produce three results:

Icon

Description




The Rule process component returns one or more results. The intermediate result can be displayed.


The Rule process component does not return any results. Possible causes:

  • None of the defined rules apply to the input

  • Rules are incorrect, e.g. write errors

  • Hit policy not suitable


The Rule process component returns an error because the decision table is not compliant with S-FEEL. A report with an explanation of the error is available.

S-FEEL expressions for defining rules


Operator / expression

Description

Comparison

10

Checks whether the input value is equal to the specified value, e.g. 10

  • v:[variable name]

  • f:[Feature name]

  • p:[Wildcard name]

  • c:[CaseState]

Performs a check based on a variable, feature, parameter, or case state

CTRL + SPACE can be used to call up all currently available variables, features, parameters, and activity statuses in a selection list.

<

Checks if the input value is less than the specified value, e.g. < 10

<=

Checks if the input value is less than or equal to the specified value, e.g. <= 10

>

Checks if the input value is greater than the specified value, e.g. > 10

>=

Checks whether the input value is greater than or equal to the specified value, e.g. >= 10

not()

Checks whether the input value is not less than or equal to the specified value, e.g. not(<=10)

Interval

[1..10]

Checks whether the input value is greater than or equal to the start value and less than or equal to the end value

(1..10]

Checks whether the input value is greater than the start value and less than or equal to the end value

[1..10)

Checks whether the input value is greater than or equal to the start value and less than the end value

(1..10)

Checks whether the input value is greater than the start value and less than the end value

Disjunction

3,5,7

Checks whether the input value is 3.5 or 7

<2,>10

Checks if the input value is less than 2 or more than 10

10,[20..30]

Checks whether the input value is either 10 or between 20 and 30

"Meier", "Müller, "Weber"

Checks whether the input value is either Meier, Müller or Weber

Note:

You can find an extensive reference for the syntax of the S-FEEL notation in the current DMN 1.1 specification (chapter 9) of the Object Management Group.https://www.omg.org/spec/DMN/1.1
