Declaring Configurations in the Design View

Path:

Here, you can enter a path that appears as part of the URL in the browser. The first time you open the WAC file, the name of the Web App Project is automatically entered.

Display Name:

Enter the display name of the Web App in this field. The display name of the Web App is displayed in the browser tab or title bar.

Logo:

Path to a graphics file (.gif, .png or .svg) or a material icon that is used as the logo of the Web App.

Logo Color:

Use this field to define the color of the logo. You can enter a hexadecimal color value (e.g. ff5a00) or a color code from the Web App color palette (see Theming), e.g. A200.

Using this field, you can only change the color of a logo that you have added via logoURLwith a material icon. You cannot set the color for image files.

Favicon:

Path to the graphics file (.gif, .ico, .png, or .svg) used as the favicon of the Web App. The file must be in the Resources folder just below the Web App project.

Display Header Section:

With this checkbox, you define whether the header section of the Web App is displayed. By default, the checkbox is selected.

Display Footer:

With this checkbox, you define whether the footer section of the Web App is displayed. By default, the checkbox is selected.

Overlay Blurred Background:

With this checkbox, you define whether the background should be blurred or clear when displaying overlay structure elements. By default, the checkbox is selected. This means that the part of the Web App that is still visible in the background when opening an overlay becomes blurry.

Cookie Consent:

With this checkbox, you define whether the pop-up message for cookie consent is displayed. By default, the checkbox is selected.

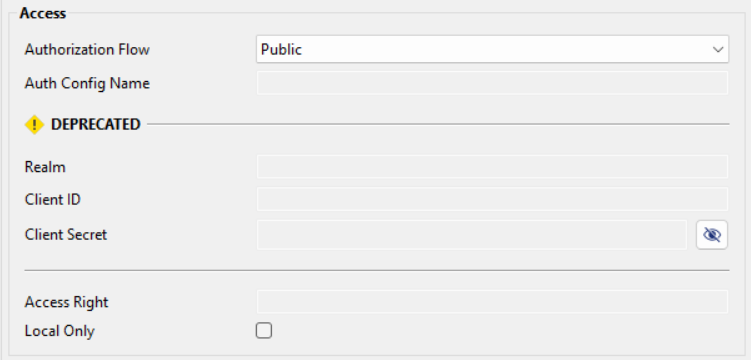

Authorization Flow:

With this drop-down list, you define which authorization flow is used.

Available options:

Public:
With this option, you define that no login is required. Users who access the Web App without logging in are identified as anonymous users. Anonymous users cannot receive special rights.

Authenticated:
With this option, you define that users must log in to the Web App. The user's rights and roles are configured in the identity provider used.

Note:

If you have opened Web Apps and have been inactive for a while, the refresh token for your session expires.

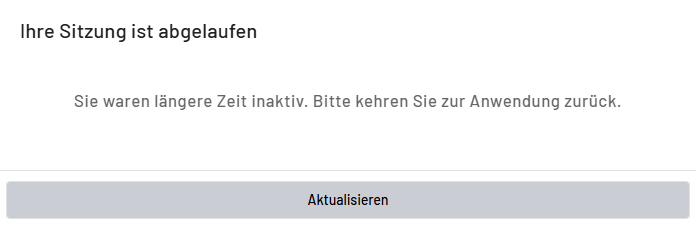

In this case, the following message is displayed:

Auth Config Name:

This field is only active if you select Authorization Flow Authenticated. Here you enter a configuration that you have defined in the authentication_config.xml file. For more information, see Authentication with OpenID Connect (OIDC).

⚠️ DEPRECATED

• Realm

• Client ID

• Client Secret


Access Right:

With this field, you define which role can access the Web App. You can enter the name of a previously defined role.

Local Only:

With this checkbox, you define whether the project is only to be deployed locally. By default, the checkbox is cleared.

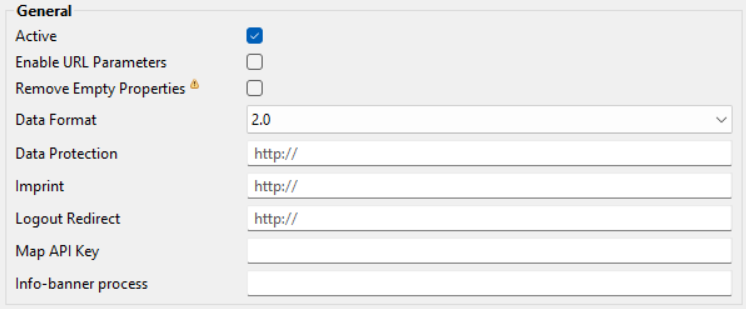

Active:

With this checkbox, you define whether the project is activated. By default, the checkbox is cleared.

Enable URL Parameters:

With this checkbox, you define whether data is to be transmitted to a Web App when it is called.

Remove Empty Properties:

With this checkbox, you define whether empty property values are sent from the Web App to the X4 process. That is, this option determines whether, for example, uncompleted fields of a form are passed to the process as properties even without values.

Available options:

• Checkbox cleared (default): Empty property values are sent from the Web App to the X4 process.

  <?xml version="1.0" encoding="UTF-8"?>
  <Action>
  	<Component>Components/Dashboard.detail</Component>
  	<Firstname>John</Firstname>
  	<Lastname>Doe</Lastname>
  	<Postcode></Postcode>
  	<City></City>
  	<Street></Street>
  	<Houseno></Houseno>
  	<boolean>false</boolean>
  </Action>


• Checkbox selected: Empty property values are not sent to the X4 process.

  <?xml version="1.0" encoding="UTF-8"?>
  <Action>
  	<Component>Components/Dashboard.detail</Component>
  	<Firstname>John</Firstname>
  	<Lastname>Doe</Lastname>
  	<boolean>false</boolean>
  </Action>


Data Format:

With this drop-down list, you define which data format is used.

Available options:

• 1.0

• 2.0 (default)

Data Protection:

This field allows you to link external pages as a privacy statement.

Imprint:

This field allows you to link external pages as imprint.

Logout Redirect:

This field allows you to redirect users to the specified URL after logging out. You can enter any valid URL with any valid protocol (http://, https:// etc.), e.g. https://www.softproject.de/.

MAP API Key:

If Google Maps is used as the map provider, the following APIs must be enabled:

• Maps JS API

• Locations (for search and route calculation)

• Directions (for route calculation)

Info-banner process:

In this field, you can enter the path to the.wrf file that defines the data to create an info banner in the Web App The Technical Process must be in the Services/Processes folder.

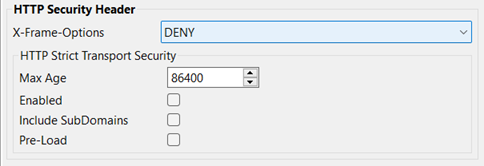

X-Frame Options:

With this drop-down list, you define whether a browser calling the target page is allowed to embed the page in a <frame>, <iframe>, <embed>, or <object>.

Available options:

• DENY: The target page must not be embedded.

• SAMEORIGIN: The target page can be embedded.

HTTP Strict Transport Security area :

Max Age:

In this field, you define the time in seconds the browser is supposed to remember that the Web App can only be accessed via HTTPS.

Enabled:

With this checkbox, you define whether the HTTP Strict Transport Security response header is enabled or disabled.

Include SubDomains:

With this checkbox, you define whether the settings for the HTTP Strict Transport Security response header also applies for the subdomains of the Web App.

Pre-Load:

With this checkbox, you define whether the HTTP Strict Transport Security response header is preloaded.

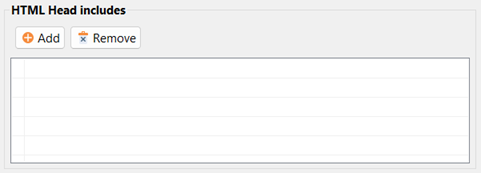

Here, you can add the path to files in the project. The file contents are inserted into the HTML head as meta elements.
