ListView

<ListView> can be used to display (simple or complex) data objects from lists. How a single object is displayed is defined as an element template. To do this, the display is defined within a layout (Flow Layout or Grid Layout). This display is applied to each individual object. Since the data objects that are to be displayed are supplied by a Technical Process, a corresponding Technical Process must be defined in the component that contains the <ListView> control.

Instructions for use

A <ListView> control is created with the <ListView> element.

<ListView>
...
</ListView>

<ListView> controls can be used in all available layout types: For more information, see Layouts.

Attribute

In addition to the default attributes, you can define the following attributes for <ListView> controls.

Actions

The following actions are available for <ListView> controls. For more information about actions, see Actions.

<SelectAction>

You can insert the Select action using the <SelectAction/> element within <ListView>. The action is triggered when the user selects an entry in the list view.

<DoubleClickAction>

You can insert the DoubleClick action using the <DoubleClickAction/> element within <ListView>. The action is triggered when the user double-clicks an entry in the list view.

Examples

Here you will find various examples of <ListView> controls.

Example 1: <ListView> without actions

Input

<DetailComponent name="ExampleListView" path="ExampleListView" displayName="Example ListView" process="example.wrf">
	<Properties>
		<Property name="ListObject" type="List">
			<Property name="Caption" type="String" />
			<Property name="Name" type="String" />
			<Property name="City" type="String" />
		</Property>
	</Properties>
	<FlowLayout>
		<ListView objectList="#ListObject">
			<FlowLayout>
				<Label value="#Caption"/>
				<Label value="#Name"/>
				<Label value="#City"/>
			</FlowLayout>
		</ListView>
	</FlowLayout>
</DetailComponent>

Output

The data supplied by the Technical Process are in the following format:

<?xml version="1.0" encoding="UTF-8" ?>
<Ok>
	<ListObject>
		<Caption>Example 1</Caption>
		<Name>Max Mustermann</Name>
		<City>Ettlingen</City>
	</ListObject>
	<ListObject>
		<Caption>Example 2</Caption>
		<Name>John Doe</Name>
		<City>New York</City>
	</ListObject>
	<ListObject>
		<Caption>Example 3</Caption>
		<Name>Kari Nordmann</Name>
		<City>Oslo</City>
	</ListObject>
	...
</Ok>

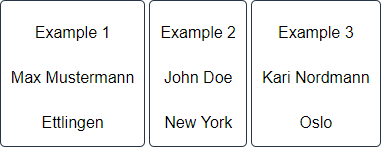

The above code creates the following lists:

Example 2: <ListView> with actions

Input

<DetailComponent
	path="Dashboard"
	displayName="Dashboard"
	process="DataInput.wrf"
	default="true">
	<Properties>
		<Property
			name="ListObject"
			type="List">
			<Property
				name="name"
				type="String" />
		</Property>
	</Properties>
	<FlowLayout>
		<ListView objectList="#ListObject">
			<SelectAction process="Response.wrf" />
			<FlowLayout>
				<TextBox value="#name" />
			</FlowLayout>
		</ListView>
	</FlowLayout>
</DetailComponent>

Output

The data supplied by the Technical Process are in the following format:

<?xml version="1.0" encoding="UTF-8"?>
<Action>
   <ListObject selected="true">
      <name>Ettlingen</name>
   </ListObject>
   <ListObject>
      <name>New York</name>
   </ListObject>
   <ListObject>
      <name>Oslo</name>
   </ListObject>
</Action>
