<TextBlock> can be used to format text blocks within a Web App.

Instructions for use

A <TextBlock> control is created with the <TextBlock> element.

<TextBlock>
...
</TextBlock>

<TextBlock> controls can be used in all available layout types: For more information, see Layouts.

Attribute

The <TextBlock> control is defined via the standard attributes for controls.

Elements

The <TextBlock> element can include the following elements:

Free text
<Binding>
<Break>
<Paragraph>

<TextLink>
<Translation>

`<Binding>` element

The <Binding> element is used for Data Binding.

You can define the following attribute for the <Binding> element:

Attribute	Description
`value`	Binds a valid data binding string. Note that no constants are allowed.

Example for <Binding>

XML

<Span>
    Span with binding
    <Break />
    value = '<Binding value="#test" />'
</Span>

`<Break>` element

The <Break> element is used to insert line breaks within a text section.

Example for <Break>

XML

<Paragraph>
   	SoftProject GmbH
  	<Break/>
   	Am Erlengraben 3
   	<Break/>
  	D-76275 Ettlingen
   	<Break />
   	E-Mail: info@softproject.de
</Paragraph>

`<Paragraph>` element

The <Paragraph> element is used to divide texts into different paragraphs and can contain the following elements:

Free text
<Binding>
<Break>
<Paragraph>

<TextLink>
<Translation>

You can define the following attribute for the <Paragraph> element:

Attribute	Description
`background`	Defines a color for the background of the control. Note: This setting overrides the default color of the color scheme. Possible values: Hexadecimal color value, e.g. `ff5a00` Note: Do not use a hash before the color value. Do not use an abbreviated notation of the color value. Color code from the color palette of the Web App, e.g. `A200.` For more information, see Theming.
`fontFamily`	Specifies the font family. Note: This attribute overwrites the default Web App font for the control. If the attribute is defined on an element, the font family is inherited by any child elements unless the `fontFamily` attribute is explicitly defined for the child elements. Possible values: `MainFont`: stored main font Font code from the font palette, e.g. `Font04`
`fontSize`	Sets the font size. Note: This attribute overrides the default Web App font size for the control. Possible values: Any integer or decimal number with a period as a decimal separator, e.g. `20`, `20.8`, `.9` Font size in pixels, e.g. `20px` Font size in points, e.g. `18pt` Font size compared to the font size of the parent element, e.g. `.8em` or `120%` Keywords, e.g. `small` or `larger`
`fontStretch`	Defines the width of each character. Note: This attribute overrides the default character width for the control. Possible values: `Condensed` `Expanded` `ExtraCondensed` `ExtraExpanded` `Medium` `Normal` (default) `SemiCondensed` `SemiExpanded` `UltraCondensed` `UltraExpanded`
`fontStyle`	Defines the tilt of the font. Note: This attribute overrides the default font tilt for the control. Possible values: `italic`: Italic font `normal`: Normal font (default) `oblique`: Slanted font style (calculated)
`fontWeight`	Defines the font weight. Note: This attribute overrides the default font weight for the control. Possible values: `Black` `Bold` `DemiBold` `ExtraBlack` `ExtraBold` `ExtraLight` `Heavy` `Light` `Medium` `Normal` (default) `Regular` `SemiBold` `Thin` `UltraBlack` `UltraBold` `UltraLight`
`foreground`	Defines a color for the foreground (text, etc.) of the control. Note: This setting overrides the default color of the color scheme. Possible values: Hexadecimal color value, e.g. `ff5a00` Note: Do not use a hash before the color value. Do not use an abbreviated notation of the color value. Color code from the color palette of the Web App, e.g. `A200` For more information, see Theming.
`justifyText`	Defines the text alignment within the text block. Possible values: `justify`: full justification `center`: centered `left` (default): left-aligned `right`: right-aligned
`textOverflow`	Specifies what should happen when the control is full. Possible values: `ellipsis` (default): Use `...` to show that the text is not finished `hidden` : Cancels the text, whole words are observed. `wordBreak`: Cancels the text within the word. `allow`: Wraps the text between the words.

Example <Paragraph>

XML

<Paragraph justifyText="justify" textOverflow="allow">
    Paragraph
    <Binding value="#test" />
</Paragraph>

`` element

The  element is used to divide texts into different paragraphs and can contain the following elements:

Free text
<Binding>
<Break>
<Paragraph>

<TextLink>
<Translation>

You can define the following attribute for the  element:

Attribute	Description
`background`	Defines a color for the background of the control. Note: This setting overrides the default color of the color scheme. Possible values: Hexadecimal color value, e.g. `ff5a00` Note: Do not use a hash before the color value. Do not use an abbreviated notation of the color value. Color code from the color palette of the Web App, e.g. `A200.` For more information, see Theming.
`fontFamily`	Specifies the font family. Note: This attribute overwrites the default Web App font for the control. If the attribute is defined on an element, the font family is inherited by any child elements unless the `fontFamily` attribute is explicitly defined for the child elements. Possible values: `MainFont`: stored main font Font code from the font palette, e.g. `Font04`
`fontSize`	Sets the font size. Note: This attribute overrides the default Web App font size for the control. Possible values: Any integer or decimal number with a period as a decimal separator, e.g. `20`, `20.8`, `.9` Font size in pixels, e.g. `20px` Font size in points, e.g. `18pt` Font size compared to the font size of the parent element, e.g. `.8em` or `120%` Keywords, e.g. `small` or `larger`
`fontStretch`	Defines the width of each character. Note: This attribute overrides the default character width for the control. Possible values: `Condensed` `Expanded` `ExtraCondensed` `ExtraExpanded` `Medium` `Normal` (default) `SemiCondensed` `SemiExpanded` `UltraCondensed` `UltraExpanded`
`fontStyle`	Defines the tilt of the font. Note: This attribute overrides the default font tilt for the control. Possible values: `italic`: Italic font `normal`: Normal font (default) `oblique`: Slanted font style (calculated)
`fontWeight`	Defines the font weight. Note: This attribute overrides the default font weight for the control. Possible values: `Black` `Bold` `DemiBold` `ExtraBlack` `ExtraBold` `ExtraLight` `Heavy` `Light` `Medium` `Normal` (default) `Regular` `SemiBold` `Thin` `UltraBlack` `UltraBold` `UltraLight`
`foreground`	Defines a color for the foreground (text, etc.) of the control. Note: This setting overrides the default color of the color scheme. Possible values: Hexadecimal color value, e.g. `ff5a00` Note: Do not use a hash before the color value. Do not use an abbreviated notation of the color value. Color code from the color palette of the Web App, e.g. `A200` For more information, see Theming.

Example for

XML

<Span fontWeight="ExtraBold" foreground="GaugeAxisMiddle">
    Span
    <Binding value="#test" />
</Span>

`<TextLink>` element

The <TextLink> element is used to create a link. To generate the link, an action must be defined. For more information, seeActions.

The following actions are supported:

CustomAction
DownloadAction
SelectAction
UploadAction

Example for <TextLink>

XML

<?xml version="1.0" encoding="UTF-8"?>
<DetailComponent xmlns="http://softproject.de/webapp/1.0">
	<FlowLayout>
		<Header value="Welcome to my new Web App!" />
		<TextBlock>
			<Link>
				<SelectAction
					process="myProcess.wrf"
					displayName="Click here"></SelectAction>
			</Link>
		</TextBlock>
	</FlowLayout>
</DetailComponent>

`<Translation>` element

The <Translation> element is used to store a translation key for multilingual interfaces.

You can define the following attribute for the <Translation> element:

Attribute	Description
`value`	Specifies the translation key.

Example for <Translation>

XML

<Span>
    Span with translation
    <Break />
    value = '<Translation value="$TranslationKey" />'
</Span>

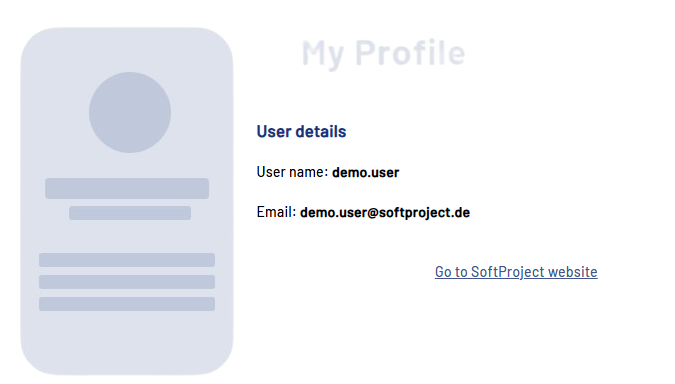

Example

TextBlock in the Detail Component

XML

<DetailComponent xmlns="http://softproject.de/webapp/1.0" name="PasswordBox">
    <FlowLayout>
        <TextBlock>
            <Paragraph>
                <Span fontWeight="Bold" fontSize="larger" foreground="500"> User details </Span>
            </Paragraph>
            <Paragraph>
                <Span>User name:</Span>
                <Span fontWeight="Bold">demo.user</Span>
                <Break/>
                <Break/>
                <Span>Email:</Span>
                <Span fontWeight="Bold">demo.user@softproject.de</Span>
                <Break/>
                <Break/>
            </Paragraph>
            <Paragraph justifyText="center">
                <TextLink>
                    <CustomAction externalLinkTarget="new" externalLink="https://www.softproject.de/de/" displayName="Go to SoftProject website">
					</CustomAction>
                </TextLink>
            </Paragraph>
        </TextBlock>
    </FlowLayout>
</DetailComponent>
