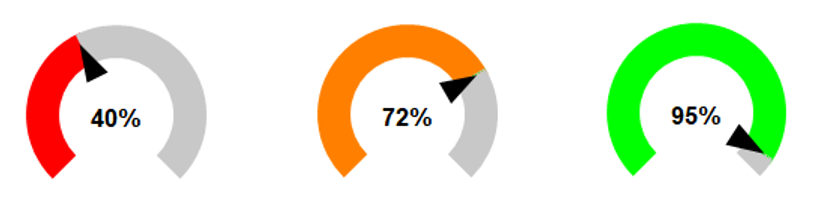

The Process Quality Index is a graphical tool that indicates how well an ESB process has been modeled in terms of standards compliance and clarity.
Rating of the criteria
|
Criteria |
Condition |
Rating |
|---|---|---|
|
Number of elements |
100% → < 15 elements 75% → < 20 elements 50% → < 25 elements 25% → < 30 elements 0% → >= 30 elements |
45% |
|
Number of stop elements |
100% → < 3 elements 75% → < 4 elements 50% → < 5 elements 25% → < 6 elements 0% → >= 6 elements |
15% |
|
Labels of the elements are not empty |
true → 100% false → 0% |
10% |
|
Process title was set (not the name of process file) |
true → 100% false → 0% |
5% |
|
Labels of the elements were adjusted (not filename) |
true → 100% false → 0% |
5% |
|
No elements on the right side of stop elements |
true → 100% false → 0% |
5% |
|
No elements on the left side of start elements |
true → 100% false → 0% |
5% |
|
No overlapping elements |
true → 100% false → 0% |
5% |
|
Flow Direction Index |
|
5% |
|
Maximum |
100% |
|
