The List Savepoints operation generates a list of the savepoints that have been set in a process.

Input

The adapter does not expect any input.

Example

Output

The adapter generates an XML file as output:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Savepoints>
    <Savepoint id="2be2eab5-317e-4c02-9896-7de77c4fa217">
        <PID>1675418719043677647</PID>
        <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID>
        <Repository>1</Repository>
        <Project>SavePoints</Project>
        <Process>Processes/SaveMe.wrf</Process>
        <NextAction_ID>2</NextAction_ID>
    </Savepoint>
    <Savepoint id="72541d1c-fb40-433a-9cd3-677d8cdf814f">
        <PID>1675418719043677647</PID>
        <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID>
        <Repository>1</Repository>
        <Project>SavePoints</Project>
        <Process>Processes/SaveMe.wrf/SaveMePrivateSubprocess.wrf</Process>
        <NextAction_ID>1</NextAction_ID>
    </Savepoint>
    <Savepoint id="e2c06c03-1d66-4bdf-9f15-616ee9e8ce8b">
        <PID>1675418719043677647</PID>
        <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID>
        <Repository>1</Repository>
        <Project>SavePoints</Project>
        <Process>Processes/SaveMeSubprocess.wrf</Process>
        <NextAction_ID>3</NextAction_ID>
    </Savepoint>
</Savepoints>

The following elements can be included in the output:

Element	Description
`Savepoint`	The UUID of the savepoint is specified with the `id` attribute.
`PID`	Process ID Note: There are two scenarios for getting the PID: Scenario 1 Savepoints always get the PID of the root process when the process containing a savepoint is called via the root process. This scenario is shown in the above output. Here, the PIDs are identical for all the savepoints retrieved. Scenario 2 If the process with the savepoint is not called with the root process, the PID of the process with the savepoint is used. Example for scenario 2: <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <Savepoints> <Savepoint id="2be2eab5-317e-4c02-9896-7de77c4fa217"> <PID>1675418719043677647</PID> <PUID>eab1040b-6635-4d64-9cbf-f613ace4291d</PUID> <Repository>1</Repository> <Project>SavePoints</Project> <Process>Processes/SaveMe.wrf</Process> <NextAction_ID>2</NextAction_ID> <Savepoint id="44d7e9b5-5fa2-403e-8645-dee669dc69d0"> <PID>1675418719054967421</PID> <PUID>88ffaa69-92e7-43d4-9ffc-3d36a2a50c2b</PUID> <Repository>1</Repository> <Project>SavePoints</Project> <Process>Processes/SaveMeSubprocess.wrf</Process> <NextAction_ID>3</NextAction_ID> </Savepoint> </Savepoints>
`PUID`	UUID of the process which was used to get the savepoints Note: For savepoints created with an X4 version prior to 7.3, only the PID is retrieved, not the PUID.
`Repository`	The workspace where the project is stored
`Project`	Name of the project which contains the Technical Process
`Process`	Name of the Technical Process where the savepoints are set

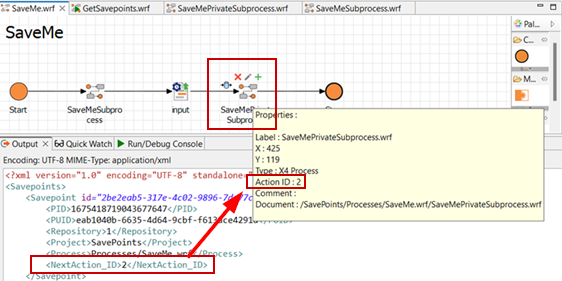

`NextAction_ID`	The Action ID of the element following the savepoint that was set in the process specified in the output Example for the first savepoint from the above output:
