Defining Case States

For the example process described here, you need so-called process statuses, i.e. statuses that are set automatically or by human interaction when the various process steps are run through and, for example, determine which branch of a gateway is to be run in the process.

You define case states and status descriptions in a separate file (.state).

Note:

You can only create case states for individual Business Processes. For more information about case states, see Managing Case States .

How to define case states

1. Click the ImportInvoices BPM Project in the Projects view and select New > Case States to create a STATE file and set a case state.

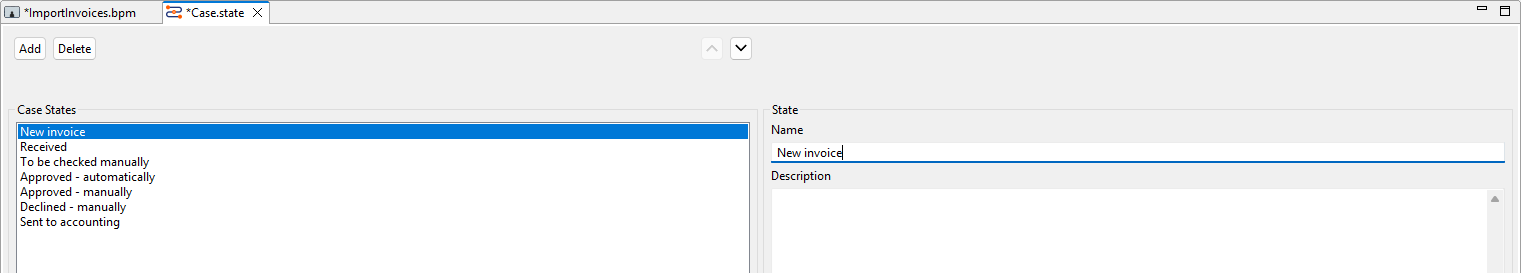

   ✅ The Case.states file is created and opens automatically in the editor.

2. Click Add to add a new status and add the following statuses:
   New invoice
Received
To be checked manually
Approved - automatically Approved - manuallyDeclined
-
manually
Sent to accounting

4. Select Save.

5. Go back to the ImportInvoices BPM Project.
