Defining Configurations in the Instance View

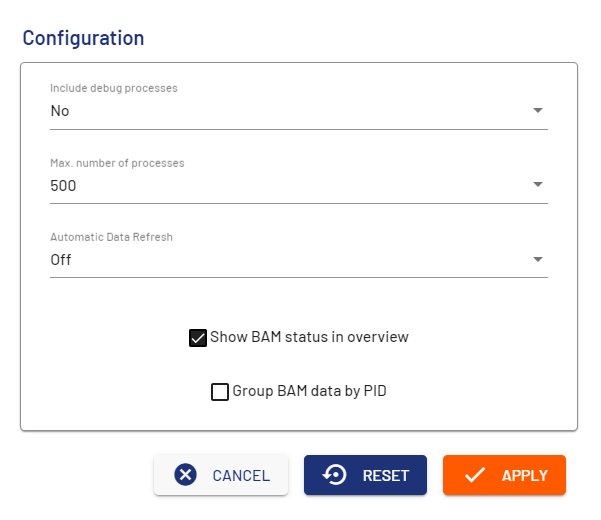

You can define various settings for the display of the process instances by selecting the gear icon (
) in the Instance View. This opens the Configuration dialog.
Element | Description |
|---|---|
Include debug processes | Select if you want to display executed process instances in Debug mode. |
Max. number of processes | Select how many processes to load on the server side. Possible values:
|
Automatic Data Refresh | Select whether the data should be updated automatically and in which interval. Possible values:
|
Show BAM status in overview |
Note: This setting is only relevant if you are using the BAM Logging Adapter with the Regardless of whether this setting is activated or deactivated, the BAM status is displayed in the detailed view of a process instance on the Process Instance: Status and Runtime card. Select whether to display the BAM Status column in the process instance summary table. This setting is disabled by default. |
Group BAM data by PID |
Note: This checkbox is only displayed if the Show BAM status in overview checkbox is activated. Select whether to group the BAM entries in the process instance summary table by process ID (PID). |
Cancel | Cancels the definition of settings. |
Reset | Resets the defined settings. |
Apply | Applies the defined settings. |
