Tab layout | X4Documentation

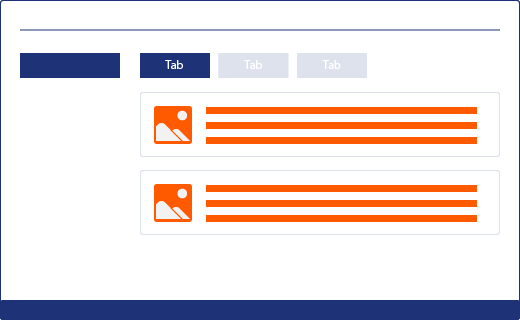

You can use the tab layout to arrange other layouts (flow layout or grid layout) on tabs. This layout is well suited for providing a lot of information that can be arranged thematically, such as forms.

The tab layout can be used both in components and within other layouts.

A tab layout is created with a <TabLayout> element. A tab layout must contain at least one <Tab> element.

A <Tab> element must contain exactly one <FlowLayout> element or a <GridLayout> element.

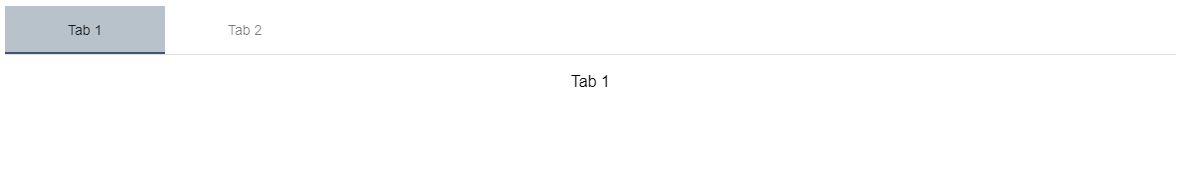

Examples

XML

<TabLayout title="Tab layout">
       <Tab displayName="Tab 1">
             <FlowLayout>
                    <Label value="tab 1" />
             </FlowLayout>
       </Tab>
       <Tab displayName="Tab 2">
             <GridLayout>
                    <Label value="tab 1" />
                    <Label value="tab 2" />
                    <Label value="tab 3" />
             </GridLayout>
       </Tab>
</TabLayout>
