Within the MasterDetailComponent any number of overlay structural elements can be created, which can be defined with the following attributes

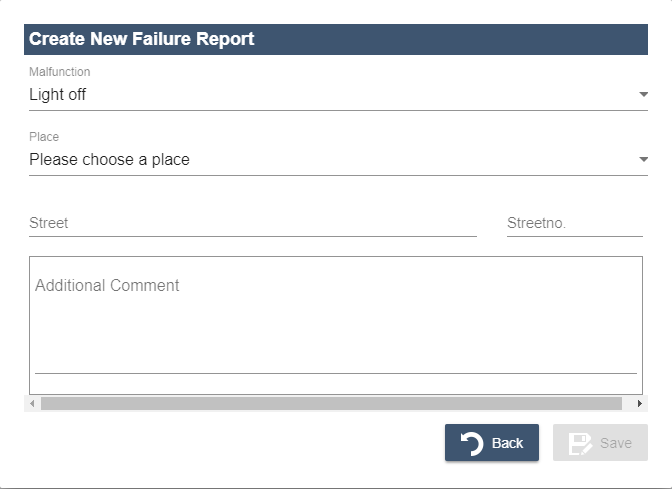

The content of the Overlay structural element is displayed as pop-up in the web application and lies above other elements. The Overlay structural element contains one more component that can display both static and dynamic content.

The Overlay structural element is defined within MasterDetailComponent after the structural elements Master and Detail. The Overlay structural element is only displayed if it is called using an action.

Within the MasterDetailComponent any number of Overlay elements can be created, which can be defined with the following attributes.

Attribute	Description
`width`	Width of the overlay The specification of the `width` attribute is optional. If the attribute is not specified, the default width is used. Possible value: Integer `> 0` for pixel specifications Integer between `0` and `100` for percentage specifications
`height`	Height of the overlay The specification of the `height` attribute is optional. If the attribute is not specified, the default width is used. Possible value: Integer `> 0` for pixel specifications Integer between `0` and `100` for percentage specifications
`units`	Defines the unit that applies to size specifications. Possible values: `pixels` `percents` (default)

Attribute

Description

width

Width of the overlay

The specification of the width attribute is optional. If the attribute is not specified, the default width is used.

Possible value:

Integer > 0 for pixel specifications
Integer between 0 and 100 for percentage specifications

height

Height of the overlay

The specification of the height attribute is optional. If the attribute is not specified, the default width is used.

Possible value:

Integer > 0 for pixel specifications
Integer between 0 and 100 for percentage specifications

units

Defines the unit that applies to size specifications.

Possible values:

pixels
percents (default)

If the attributes width and height are filled with invalid values when specifying a percentage, a validation error will be output.
If the attributes width and height are not set or specified with 0, overlays are displayed in the default size.

The attribute enableOverlayBlurredBackground within the Web App definition (.wad) can be used to specify whether the part of the Web App that is still visible in the background should be blurred or not in the case of overlays.

XML

<MasterDetailComponent  xmlns="http://softproject.de/webapp/1.0">
	<Actions/>
	<Master/>
	<Detail/>
	<Overlay width="100" height="100" units="percents">
	<!-- Reference to a component in which the Overlay element is defined-->
        <ComponentReference source="Customers/AddToEvent.list" name="AddToEvent"></ComponentReference>
    </Overlay>
    <Overlay width="200" height="300" units="pixels">
        <ComponentReference source="Customers/AddToEvent.list" name="DifferentEvent"></ComponentReference>
    </Overlay>
</MasterDetailComponent
