Process Quality Index

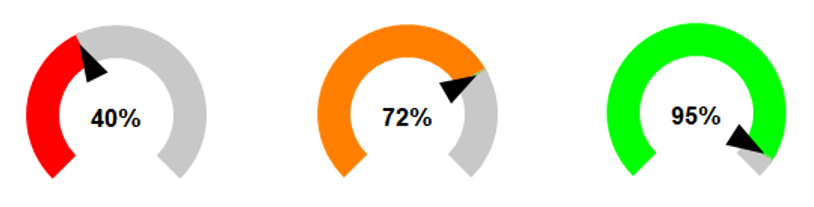

The Process Quality Index is a graphical tool that indicates how well an ESB process has been modeled in terms of standards compliance and clarity.
Rating of the criteria
| Criteria | Condition | Rating |
|---|---|---|
| Number of elements | 100% → < 15 elements 75% → < 20 elements 50% → < 25 elements 25% → < 30 elements 0% → >= 30 elements | 45% |
| Number of stop elements | 100% → < 3 elements 75% → < 4 elements 50% → < 5 elements 25% → < 6 elements 0% → >= 6 elements | 15% |
| Labels of the elements are not empty | true → 100% false → 0% | 10% |
| Process title was set (not the name of process file) | true → 100% false → 0% | 5% |
| Labels of the elements were adjusted (not filename) | true → 100% false → 0% | 5% |
| No elements on the right side of stop elements | true → 100% false → 0% | 5% |
| No elements on the left side of start elements | true → 100% false → 0% | 5% |
| No overlapping elements | true → 100% false → 0% | 5% |
| Flow Direction Index | 5% | |
| Maximum | 100% | |
