Connection

Connection: Passes the input and the execution state of the preceding process action without modification. It marks the execution branch explicitly for the X4 Server. Within a loop this component marks the return to the first loop component. It connects a Condition component with a Stop component, or helps to change a transition line's position.

Properties

Label

Text label of the symbol in the process diagram (can also be edited by pressing F2)

Examples

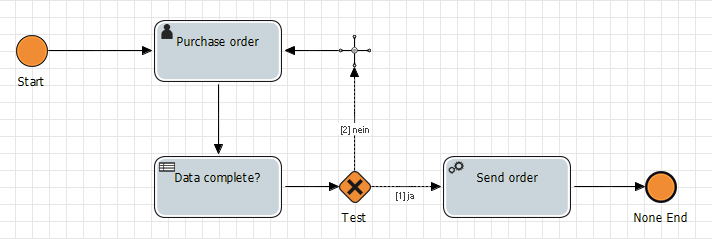

Connection between condition and the last loop component: Within loops, a Connection component is used as last loop component.
Connection between condition and stop: Between a Condition component and a Stop component, a Connection component is used.

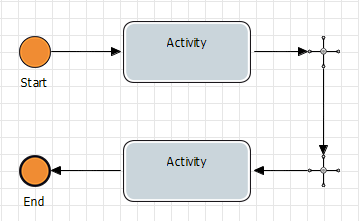

Connection to position the transition line: Transition lines are normally positioned automatically. To change the positioning explicitly a connection can be used.
