Connecting Custom Keycloak Installations

If the included Keycloak installation is to be replaced with a custom Keycloak installation, a Keycloak configuration file (keycloak_config.json) must be created in the server directory under \configurations.

Example

JSON

{
  "connection": {
    "realm": "X4Realm",
    "auth-server-url": "https://servername:8443/auth/",
    "resource": "X4",
        "ssl-required": "none",
        "confidential-port": 443,
    "credentials": {
      "provider": "legacy",
      "legacy": "XXX",
      "secret": "XXX"
    }
  }
}

The configuration file contains the following elements:

Element	Description
`connection`	Parent block with all connection parameters
`realm`	Name of the realm used for the connection
`auth-server-url`	URL of the authentication server that is used to log in (this is http://localhost:8085 when the all-in-one installation package of X4 BPMS is shipped).
`resource`	Name of the client that logs on.
`ssl-required`	Specifies whether SSL/TLS is required for the connection. This element is optional and can be used in the exceptional case that communication between X4 and Keycoak is to take place without HTTPS.
`confidential-port`	Port where Keycloak is externally available. This element is optional and can be used in case Keycloak is running behind a reverse proxy server.
`credentials`	Block of credentials for authentication
`provider`	Credential provider used
`legacy`	Legacy provider used
`secret`	Client secret/password for authentication

The following roles must be created in Keycloak:

Role	Description
x4_admin_access	Grants access to the X4 ReST API.
x4_control_center	Grants access to the X4 Control Center in the future.
x4_dev_access	Grants access to the X4 Designer.
x4_dev_access_*	Grants access to all X4 repositories.

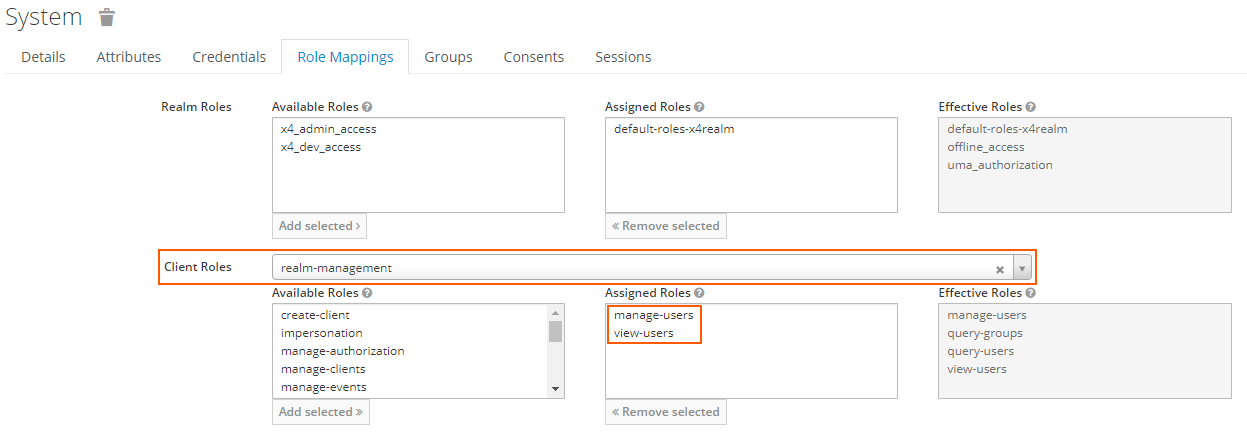

To use the X4 ReST API, the following rights must be granted to the appropriate user:

Client Roles	realm-management
Assigned Roles	manage-users view-users
