X4 Designer 7.2.0

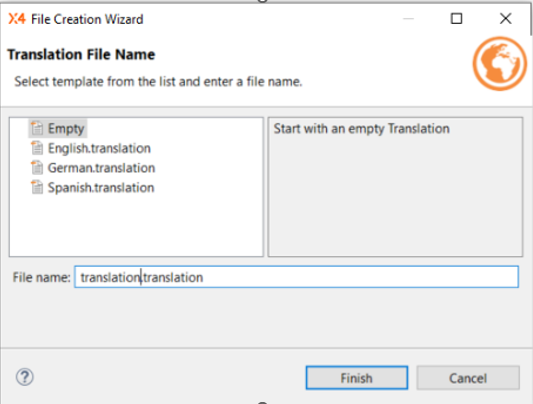

Pre-filled templates available for translations
Pre-filled templates are available when creating a new translation file in a Web App project to facilitate the creation of multi-language Web Apps.

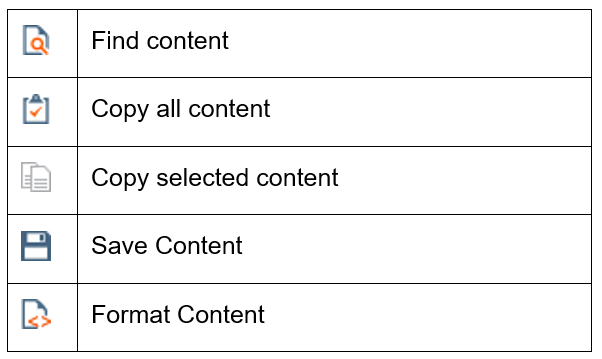

Improved “Output” view when debugging
When debugging processes, it is now possible to search, copy and save the information in the Output view.

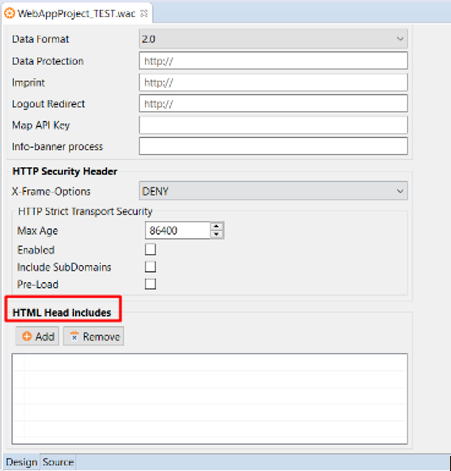

Web App Editor – Rename the title to HTML Head includes
In the web app editor (.wac editor), the title of the Header includes area for adding an HTML head element has been renamed to HTML Head includes to make the title easier to understand.

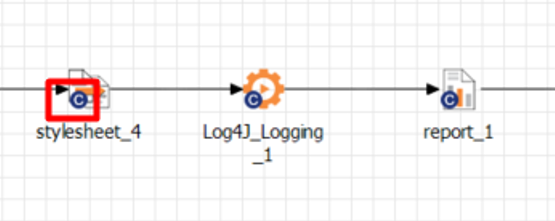

Indicate that process step has custom parameters
As soon as a user-defined parameter (custom parameter) has been defined in an adapter, a report or a mapping in a technical process, X4 Designer marks the process module with an icon. This allows you to immediately recognize for which process modules a custom parameter has been defined.

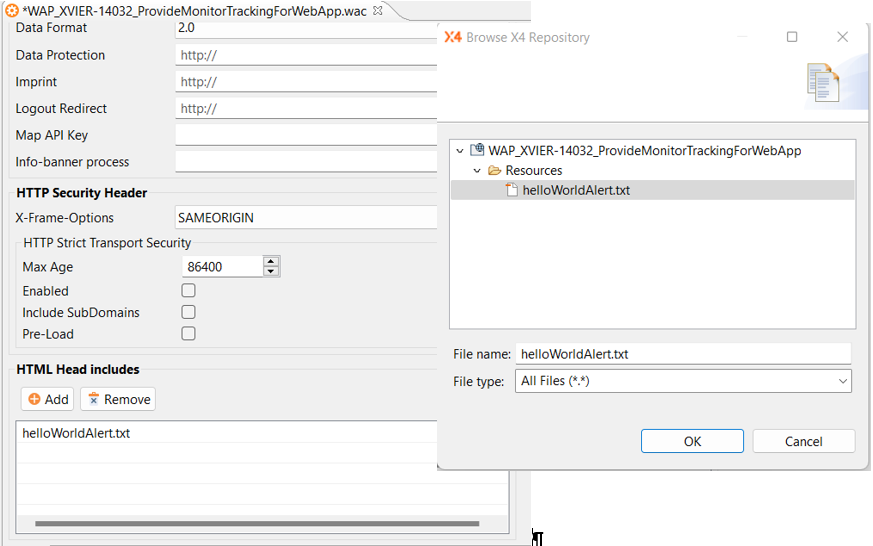

Adding JavaScript code to the Web App header
It is possible to add your own JavaScript code in the header of a Web App. The code is inserted directly before the closing </head> tag.
The resource file can be added through the .wac editor directly.
Renaming elements in the X4 Designer
To provide a consistent naming throughout all products and documents, some elements in the X4 Designer relating to the creation of processes in BPM and ESB projects have been renamed as follows:
OLD | NEW |
|---|---|
ESB: Process | Technical Process |
BPM: BPM Process | Business Process |
New X4 logo in Designer and desktop icons
The X4 BPMS logo has been changed and can now be found in X4 Designer, the Desktop icons and in the installation directory.

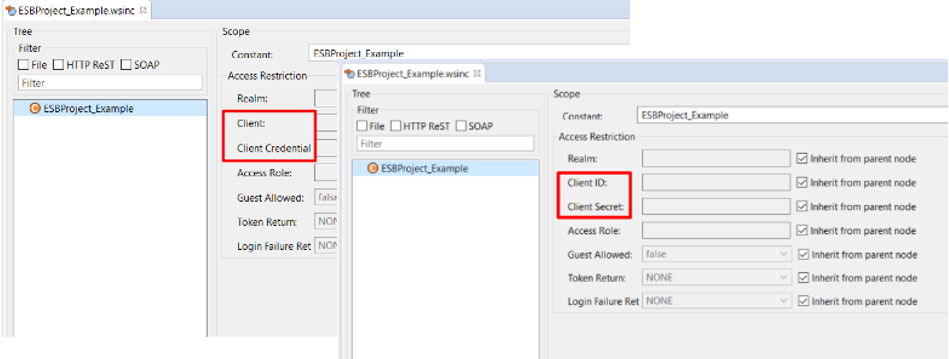

Matching label names for Keycloak settings and X4 BPMS (WSINC/WAC)
To ensure consistent naming conventions in Keycloak and X4 BPMS for defining the Client settings, X4 Designer names for WSINC and WAC have been renamed
OLD | NEW |
|---|---|
Client | Client ID |
Client Credentials | Client Secret |
Clean X4 Common Library
The templates and process libraries available in the X4 Common Library were cleaned up, e.g. unusable files were removed.

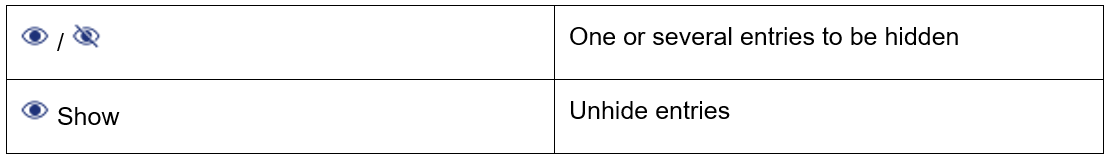

Hide entries in the Problems view
In the Problems View, it is now possible to hide entries that will not be fixed but ignored, such as mandatory parameters set via dynamic parameters.
Add X4 Designer for macOS
The X4 Designer is now also available for macOS.
