SQL Profiling 1.0.0

The SQL Profiling plugin is used to store profiling data into a relational SQL database. To do so, you need to connect the SQL Profiling plugin to a relational SQL database. The plugin is available in <server_directory>\wildfly\modules\de\softproject\x4\plugins but has to be activated in the module.xml file in the <server_directory>\wildfly\modules\de\softproject\plugins\main folder.

Warning

The first start of the profiling must be executed by a database user who has the permission to create database tables. After all tables required have been created, a user with fewer permissions can take over.

When you enable the SQL Profiling, the default profiling in the memory is turned off.

How to configure SQL Profiling

In the <server_directory>/configurations folder, create the sql_profiling_config.xml file.

Insert the following content.

XML

<?xml version="1.0"?>
<Configuration>
  <DatabaseConfiguration>
	<ConnectionString></ConnectionString>
	<UserName></UserName>
	<Password></Password>
  </DatabaseConfiguration>
	<WriteCycle>
		<Duration></Duration>
		<TimeUnit></TimeUnit>
	</WriteCycle>
	<KeepLogs>
		<Duration></Duration>
		<TimeUnit></TimeUnit>
	</KeepLogs>
	<KeepCrashedProcessLogs>
		<Duration></Duration>
		<TimeUnit></TimeUnit>
	</KeepCrashedProcessLogs>
	<RunCleanUp>
		<Duration></Duration>
		<TimeUnit></TimeUnit>
	</RunCleanUp>
</Configuration>

Enter the required values in the sql_profiling_config.xml file.

DatabaseConfiguration

Element	Description	Possible values
`ConnectionString`	JDBC connection string for the connection to the database For more information, see the official JDBC database documentation.	Connection URL for the JDBC database
`UserName`	User name for the login to the database	Any string
`Password`	Password for the login to the database	Any string
`WriteCycle`	Specifies the cycles in which data is written to the SQL database.	The element contains the following elements: `Duration` `TimeUnit`
`KeepLogs`	Specifies how long entries are stored before they are cleared automatically.	The element contains the following elements: `Duration` `TimeUnit`
`KeepCrashedProcessLogs`	Sets the period of time for which entries for crashed processes are stored before they will be cleared automatically. Crashed processes are not covered by the `KeepLogs` element.	The element contains the following elements: `Duration` `TimeUnit`
`RunCleanUp`	Sets the cycles in which the automatic cleanup is performed.	The element contains the following elements: `Duration` `TimeUnit`

WriteCycle

Element	Description	Possible values
`Duration`	Time span	Integer
`TimeUnit`	Unit of the time span	`SECONDS` `MINUTES` `HOURS` `DAYS`

KeepLogs

Element	Description	Possible values
`Duration`	Time span	Integer
`TimeUnit`	Unit of the time span	`SECONDS` `MINUTES` `HOURS` `DAYS`

KeepCrashedProcessLogs

Element	Description	Possible values
`Duration`	Time span	Integer
`TimeUnit`	Unit of the time span	`SECONDS` `MINUTES` `HOURS` `DAYS`

RunCleanUp

Element	Description	Possible values
`Duration`	Time span	Integer
`TimeUnit`	Unit of the time span	`SECONDS` `MINUTES` `HOURS` `DAYS`

How to install the plugin

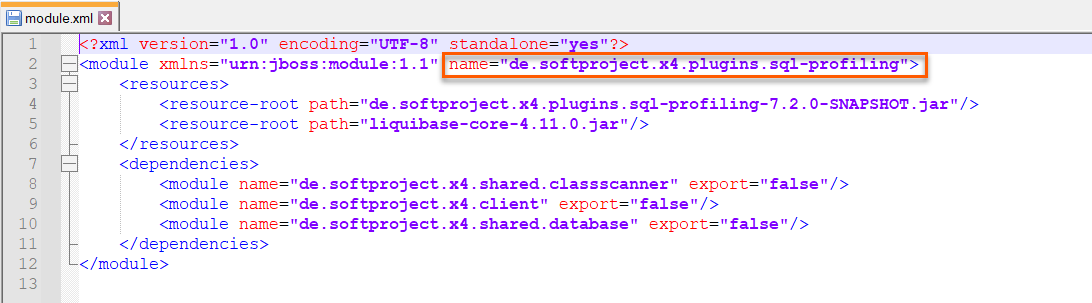

Open the module.xml file in the <Serververzeichnis>\wildfly\modules\de\softproject\x4\plugins\sql-profiling\main folder.
Copy the plugin name specified in line 2:
Open the module.xml file in the <server_directory>\wildfly\modules\de\softproject\plugins\main folder.
Add the following line to the module.xml file:
<module name="de.softproject.x4.plugins.sql-profiling" export="true"/>

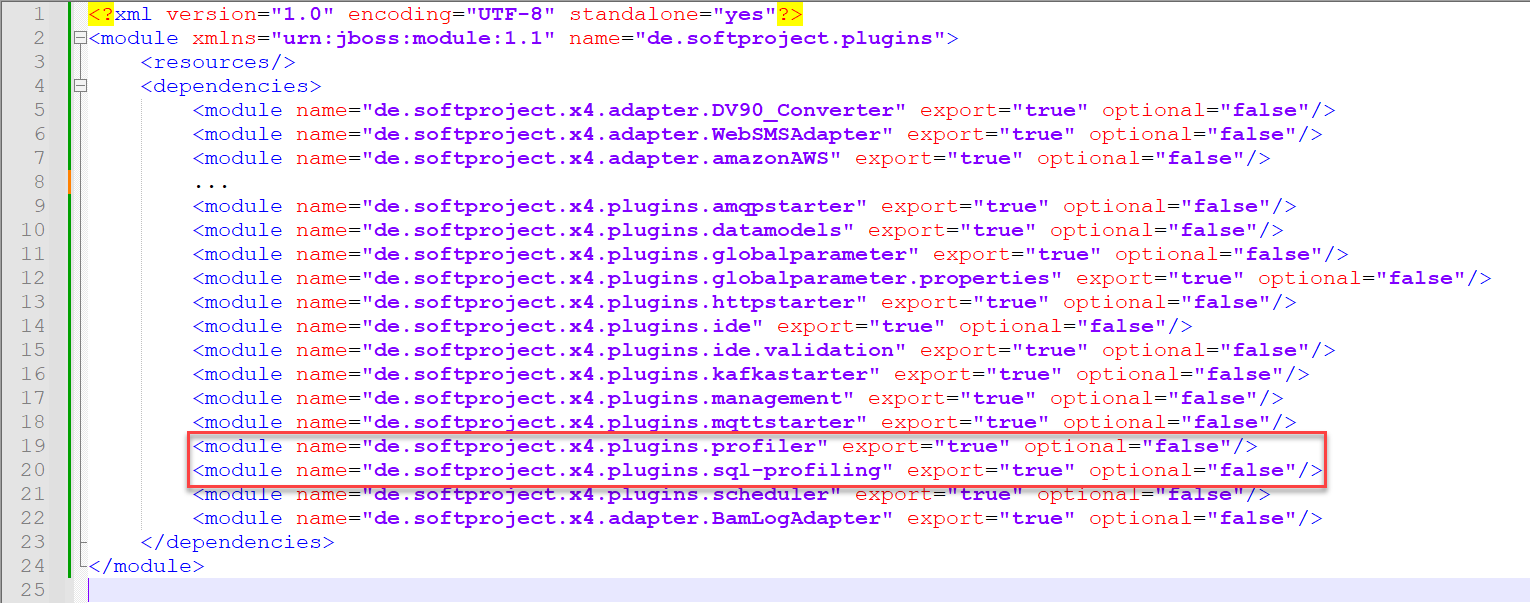

The file content should look like this:
Restart the X4 Server.
After restarting the X4 Server, the plugin will be available.
