SQL Parameter Storage

The SQL Parameter Storage plugin is used to persist global parameters in the database. You need to create the plugin to persist global parameters in an existing database or to create a new database. For more information about global parameters, see Global Parameters.

Warning

If you want to use the SQL Parameter Storage plugin, you cannot use any other method for the Global Parameter Storage. You can only use one method to persist the global parameters.

Warning

The first start of the SQL Parameter Storage plugin must be executed by a database user who has the permission to create database tables. After all tables required have been created, a user with fewer permissions can take over.

Note:

The SQL Parameter Storage plugin can be used in two ways:

• Recommended use: If the UseLegacyDatabase element is set to false a connection is made to a database where no parameter tables exist. The tables for the placeholder_groups and placeholder_values parameters are created automatically.
• If the UseLegacyDatabase element is set to true gesetzt ist, a connection to the already existing parameter tables in the X4 database is established and these tables are used.

How to configure the SQL Parameter Storage plugin

1. In the folder <server_directory>/configurations, create the file sql_globalparameter_storage_config.xml.

2. Insert the following content.

   XML

   <?xml version="1.0"?>
   <Configuration>
   	<DatabaseConfiguration>
   		<ConnectionString></ConnectionString>
   		<UserName></UserName>
   		<Password></Password>
   	</DatabaseConfiguration>
   	<UseLegacyDatabase>false</UseLegacyDatabase>
   </Configuration>



3. Enter the required values in the sql_globalparameter_storage_config.xml file.

Database Configuration

Element	Description	Possible values
ConnectionString	JDBC connection string for the connection to the database For more information, see the official JDBC database documentation.	Connection URL for the JDBC database
UserName	User name for the login to the database	Any string
Password	Password for the login to the database	Any string
UseLegacyDatabase	Determines whether: a new database should be created (recommended) or the connection to an existing database should be established	false: A new database is created. true: A connection to an existing database is established.

How to install the plugin

Note:

If you enable the SQL Parameter Storage plugin, the default properties folder with subfolders in memory will no longer be used:

<server_directory>\wildfly\modules\de\softproject\x4\plugins \globalparameter\properties

Before installing the plugin, delete the properties with contents.

1. Unzip the downloaded .zip file with the plugin.
2. Copy the <file_directory>\de folder to the <server_directory>\wildfly\modules\de\softproject\x4\plugins folder.
3. Open the module.xml file in the <server_directory>\wildfly\modules\de\softproject\plugins\main folder.

4. Delete the following line from the module.xml file:

   <module name="de.softproject.x4.plugins.globalparameter.properties" export="true"/>

5. Copy the plugin name into the <dependencies> tag:

   <module name="de.softproject.x4.plugins.globalparameter.sql" export="true"/>

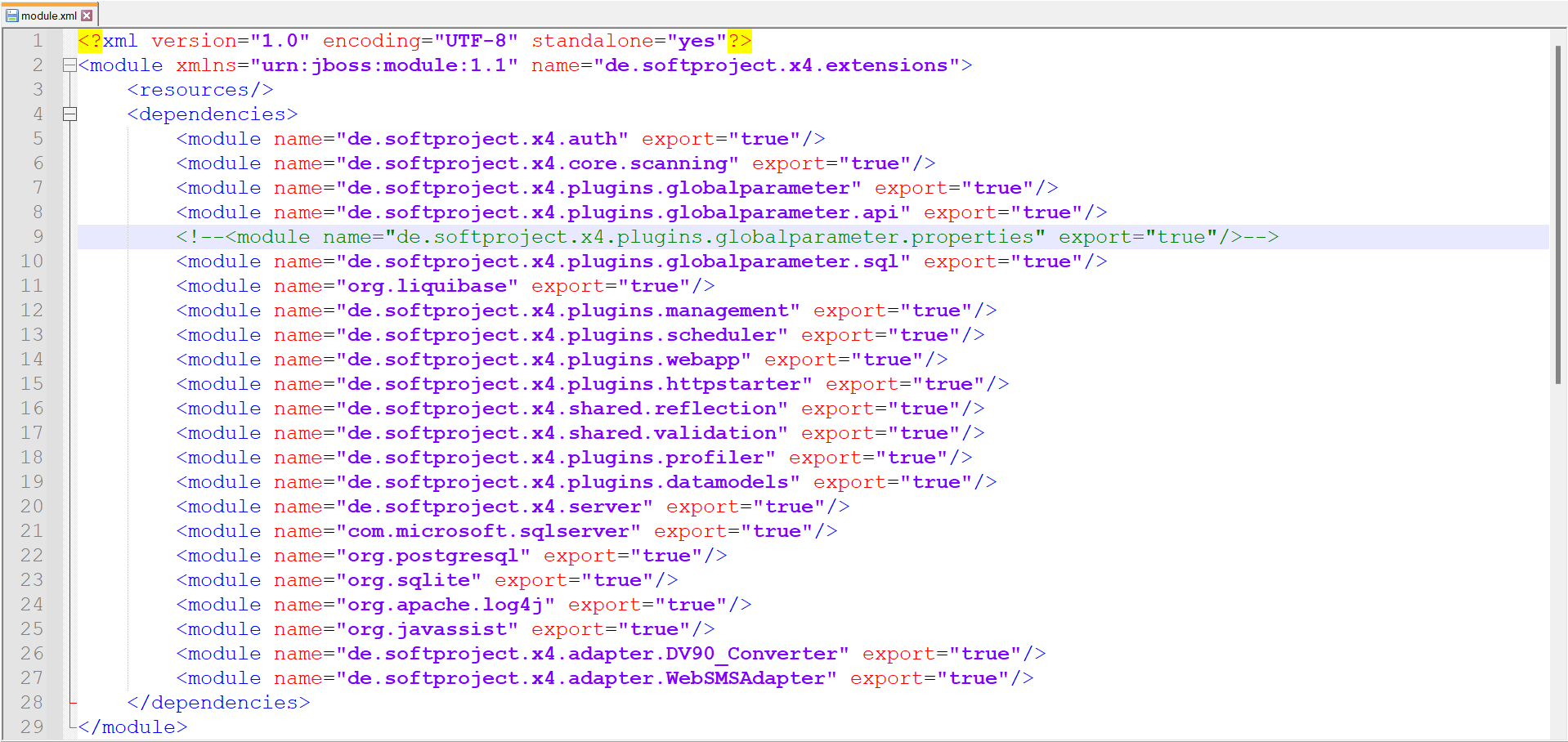

   The content of the file should be structured in this way:







6. Restart the X4 Server.
   The plugin is available after the server restart.
