Database Editor

The Database Editor allows to define SQL queries for database connection components in order to retrieve data from a relational database. The logical separation of the process components SQL statement and database connection allows these components to be used flexibly and multiple times within the X4 Designer.

To open the Database Editor, create a new SQL statement file (.stm) or open an already existing SQL statement file.

The Database Editor's structure

The Database Editor provides two different tools:

Statement Editor: Allows to connect to a database and displays the structure of the connected database. This structure can be used to create an SQL statement for the database.
Mapping Editor: Allows to define a mapping for elements of an input XML document to the named parameters of the statement previously created with the Statement Editor. This mapping is subsequently used to create an XSL mapping, which generates a dynamically created input for the (7.4.0-en) JDBC Connector using a suitable input XML document.

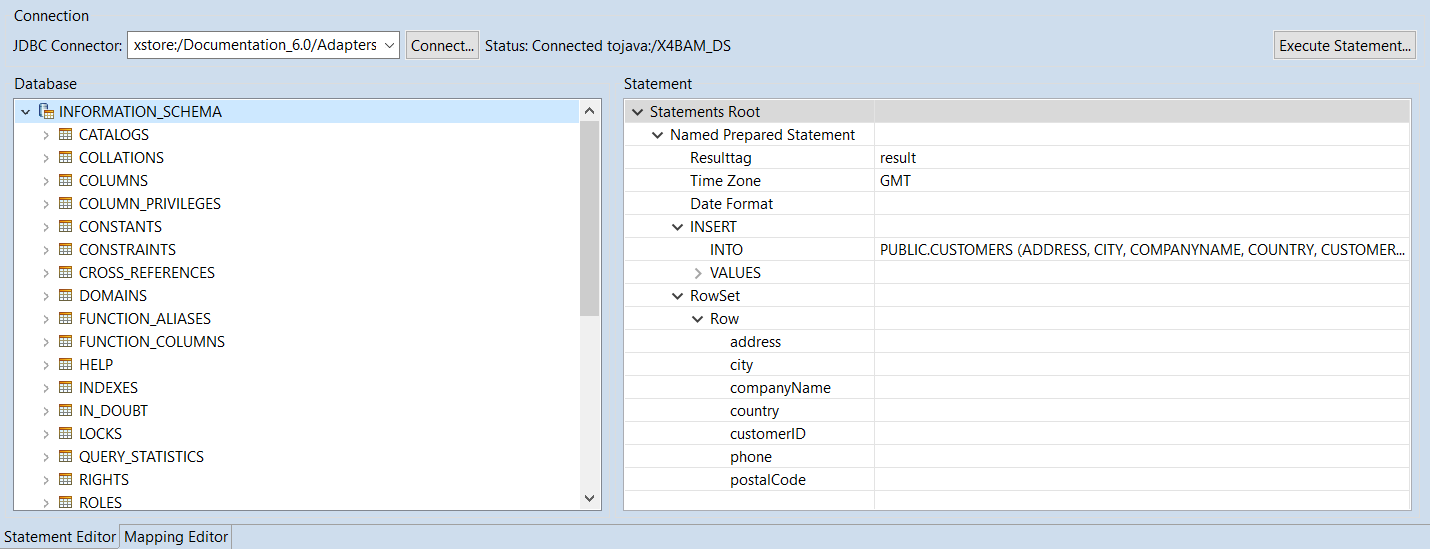

Statement Editor

The Statement Editor is divided into the following areas:

Connection area

Within this area a connection to a database can be established by means of a JDBC Connector.

JDBC Connector: xstore URL to a JDBC Connector
Connect: Connect to the database
The connection status is displayed under Status.
Execute Statement: Execute sql statement

Database area

The database's structure is displayed here after establishing the connection. The following icons are used to visualize the structure:

Database schema
Database table
Primary key
Primary key/ Foreign key
Foreign key

Statement area

Here, different statements can be created for the connected database via the context menu:

New Named Prepared Statement: Create a new Named Prepared Statement in Statements Root
Edit Named Prepared Statement: Edit Named Prepared Statement
New RowSet: Create new RowSet.
Only one RowSet can exist within a Named Prepared Statements. It is generated automatically when creating the Named Prepared Statement.
A new RowSet can only be created, if the existing one has been deleted.
New Row: Add a new row within a RowSet
New Named Parameter Value: Add a new Named Paramerter value within a row
Edit Named Parameter: Edit Named Parameter
New SELECT Statement: Create new SELECT statement
Edit SELECT: Edit SELECT instruction
Edit FROM: Edit FROM within a SELECT statement
New INSERT Statement: Create new INSERT statement
Edit INTO: Edit INTO instruction
New VALUE Entry: Create new VALUE entry
Edit VALUE: Edit VALUE
New UPDATE Statement: Create new UPDATE statement
Edit UPDATE: Edit UPDATE instruction
New SET Entry: Create new SET entry
Edit SET Entry: Edit SET entry
New DELETE Statement: Create new DELETE statement
Edit FROM: Edit FROM instruction
Edit WHERE: Edit WHERE condition
New Column: Add new column within an INSERT or SELECT instruction
New Table: Insert new table within an UPDATE or SELECT instruction
Delete: Delete element

For further information on how to create and edit statements, see section Creating Statements for a Connected Database.

Drag&Drop actions

The following Drag&Drop actions can be performed within the Statement area:

SQL statement	Database element	Statement element	Action
`SELECT`	`Column`	`SELECT`	Add the column to be selected. If the table corresponding to the added column is not already entered within `FROM`, it will be entered automatically.
`SELECT`	`Table`	`FROM`	Add the table from which is to be selected.
`UPDATE`	`Column`	`SET Entry`	Set the column as entry. If the table corresponding to the added column is not already entered within `UPDATE`, it will be entered automatically.
`UPDATE`	`Table`	`UPDATE`	Set the table to be updated.
`INSERT`	`Table`	`INTO`	Set the table into which is to be written. If there is already a table, it will be replaced. Already set columns will be deleted thereby.
`INSERT`	`Column`	`INTO`	Set the column into which is to be written. This is only possible, if the column originates from the set table.
`DELETE`	`Table`	`FROM`	Set the table to be deleted. If there is already a table, it will be replaced.

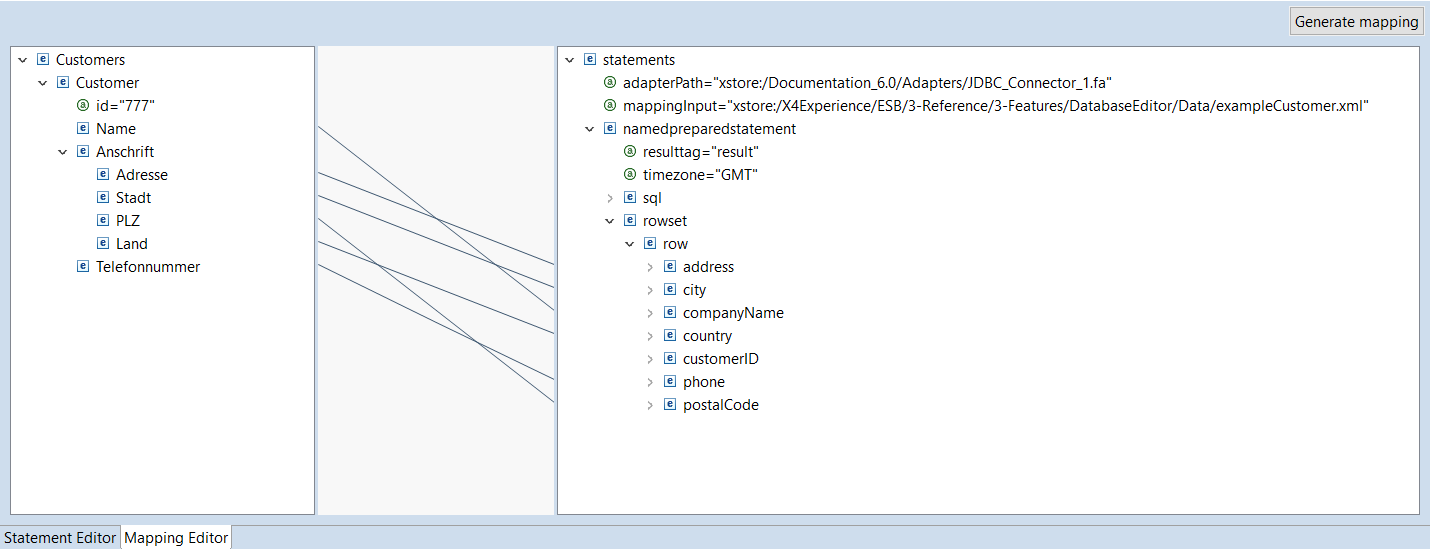

Mapping Editor

The Mapping Editor allows to define a mapping for elements of an input XML document to the named parameters of the statement previously created with the Statement Editor. This mapping is subsequently used to create an XSL mapping, which generates a dynamically created input for the (7.4.0-en) JDBC Connector using a suitable input XML document.

The Mapping Editor is divided into the following areas:

Source area

The Source area is on the Mapping Editor's left side. The input XML file can be displayed here and assigned by drag & drop.

The context menu provides the following options:

Collapse: Collapse a node's child nodes
Expand: Expand the child nodes of the selected node
Remove Input: Remove assigned input XML document

Linking area

The Linking area is located in the Mapping Editor's middle column. It visualizes the xsl:value-of connections between an element in the source document and a Named Parameter in the statement as line.

Statements area

The Statements area is located on the Mapping Editor's right side. The complete structure of the statement file is displayed here. Moreover, elements of an input XML file can be mapped to the child elements of a Row element.
