Connection

Connection: Passes the input and the execution state of the preceding process action without modification. It marks the execution branch explicitly for the X4 Server. Within a loop, this component marks the return to the first loop component. It connects a Condition component with a Stop component, or a Fork component with an immediately following Join component.

Properties

Label

Text label of the symbol in the process diagram

Output

The Connection component outputs the input without modification, including the execution status of the preceding process action.

Examples

Within loops, a Connection component is used as the last loop component.

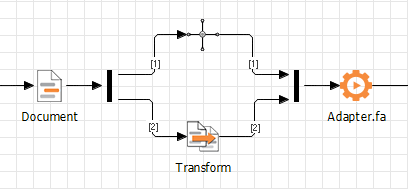

A Connection component is used within Fork/Join constructs where one execution branch has an operation (e.g., an XSL mapping to dynamically parameterize an adapter) and the other branch only passes the input document.
Between a Condition component and a Stop component, a Connection component is used.
