Configuring the Process Editor

Under Process Editor , settings for the representation of processes can be stored.

1. Select menu Tools> Options.

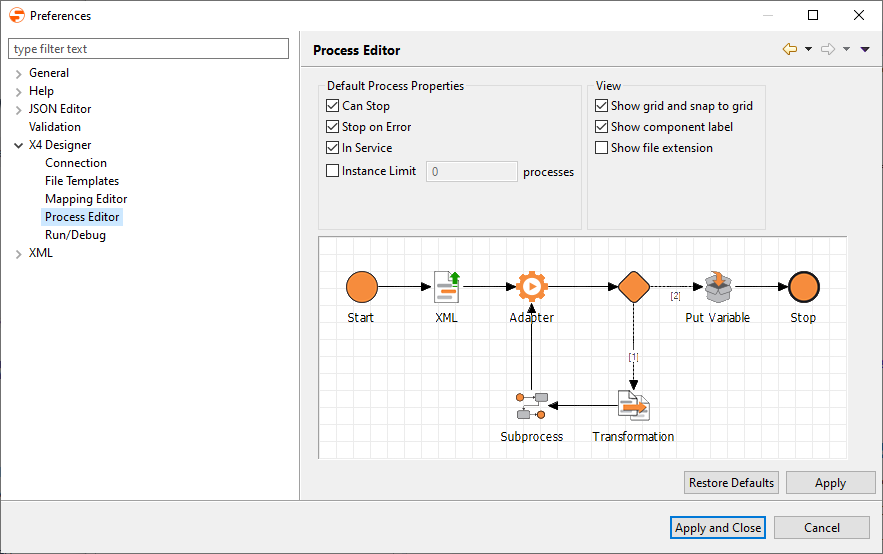

2. On the left side, double-click X4 Designer, and select Process Editor to open the Process Designer configuration.




3. Edit default behavior and properties of new processes in Default Process Properties:

   • Can Stop: Allows the process to be terminated
   • Stop on Error: Cancels process execution automatically when an error occurs

   • Public/Private: Process is executable
   • Instance Limit: Limit the number of process instances
   • Show grid and snap to grid: Display a grid and align all symbols to the grid lines
   • Show component label: Display a text label below process component symbols

   • Show file extension: Show process components with their file extensions (deactivated by default)
4. Click Apply and Close to save the configuration and close the window.
