Template with Adapter Examples
X4 BPMS contains an ESBn ESB template with sseveral sample processes with built-in ADK adapters.
Note:
The ADK package containing the Java files for the adapters contained in the template (adk-example.zip) can be downloaded from the download area of the SoftProject website . For more information, see Configuring the ADK Environment.
How to open the template
In the Projects view, right-click an empty area.
Select New.
Select ESB Project.

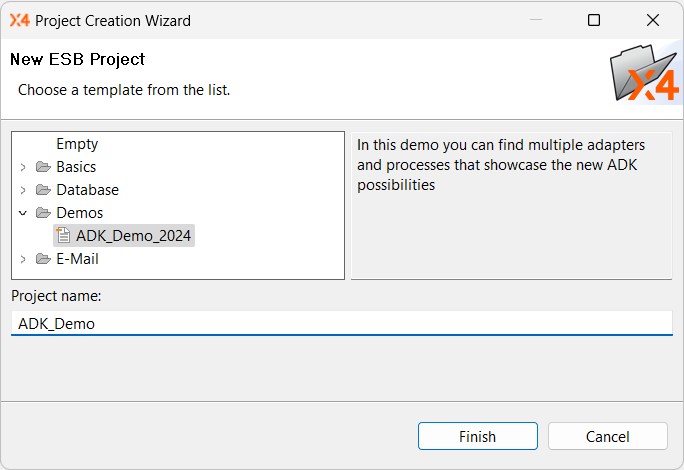

The Project Creation Wizard dialog box opens.
Select Demo > ADK_Demo_2024.
Enter a name in the Project name field.
Select Finish.

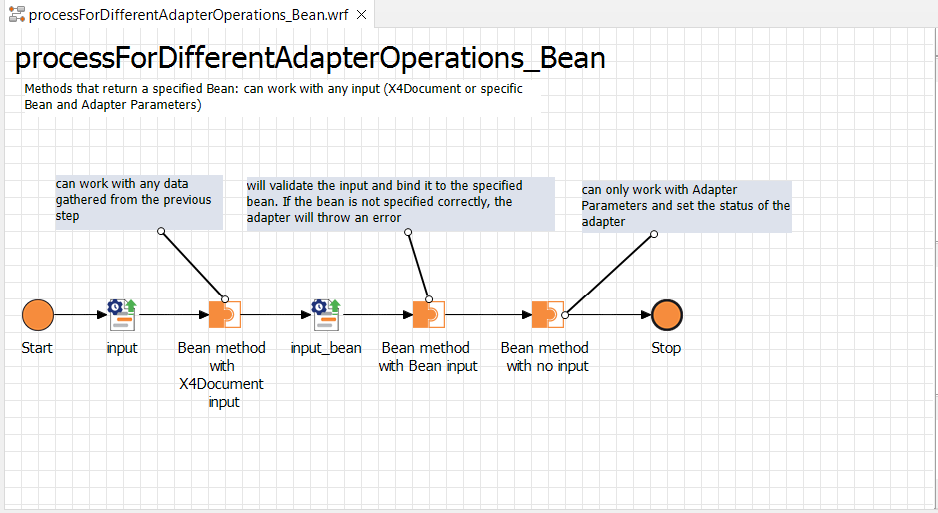

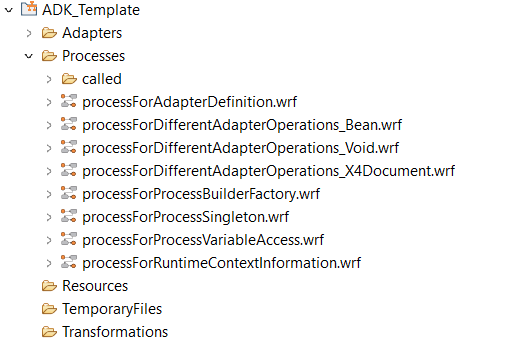

The template contains several real-world and intuitive sample processes that you can use as a basis for developing your own adapters with Java.
The sample processes contain detailed explanations and notes.
