Atlassian Jira Connector

This adapter connects processes with Atlassian Jira.

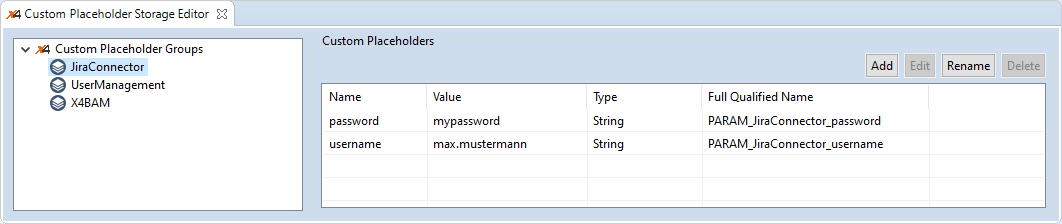

Please note that you first need to create a placeholder group with the appropriate Jira credentials to use the adapter. You can do this either manually in the Global Parameter Configuration or via an integration process using the Global Parameter Management adapter.

Example:

Properties

Operation

Defines the operation executed by the adapter

Possible values:

Get Issue: Get an issue from a specific project
Get all Issues: Get all issues from a specific project
Create Issue: Create issue in a specific project
Edit Issue: Edit available fields in an existing issue
Add Attachment: Add an attachment to a specific issue
Remove Attachment: Delete attachment of an issue by global ID
Get all Comments: Get all comments from a specific issue
Get Comment: Get a specific comment from an issue
Add Comment: Add a new comment to an issue
Edit Comment: Edit a specific comment
Search: Search by parameters
Execute Transition: Perform status transition for a specific issue
Get Transition: Get status of a specific issue

Parameters

`Adapter`	Main adapter class (Do not change!) Possible values: `de.softproject.integration.nativeadapter.NativeAdapter` : Main class (default)
`Repository`	Virtual repository of the adapter project. The value cannot be changed.
`host`	URL of the Jira server Possible values: Valid URL, e.g. `jira.example.com`
`port`	Port of the ReST API Possible values: Positive integer `443`: Default port
`key`	Project key with or without issue ID Possible values: Project key, e.g. `XVIER`, `XVIER-12345`
`secure`	Defines if the communication should take place via HTTPS or not Possible values: `true` (default) / `false`
`username`	Jira user to be used for authentification
`password`	Password of the Jira user to be used for authentication
`token`	Token used for the authentication
`query`	Used with operation `Get all Issues` ; Search criteria as a "Jira Query Language" expression. Possible values: Valid search criteria, e.g. `project=XVIER and Rang < 999` `project=ITSERVICE and reporter=max.mustermann`
`offset`	Offset at which the enumeration of operations starts
`count`	Maximum number of returned issues
`id`	ID that specifies comments or attachments

Status values

`1`	The adapter operation was executed successfully.
`-1`	An error occurred during the adapter's execution.

Input

The adapter expects different input structures depending on the selected operation. For more information, see the following subchapters.

Output

The adapter outputs different structures depending on the selected operation. For more information, see the following subchapters.
