Manual Installation

How to install the adapter manually

1. Unpack the ZIP folder of the adapter.

2. Copy the folder of the adapter to the folder <server_directory>\wildfly\modules\de\softproject\x4\adapter.

3. Make sure that in the folder <server_directory>\wildfly\modules\de\softproject\x4\adapter\<name of the adapter>\main in the module.xml file in the <resources> element the paths <resource-root path="" /> correspond to the names in the *.jar files.
   Example using the BAM Log Adapter:

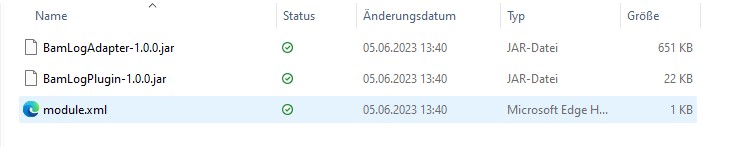

   1. Names of the *.jar files:

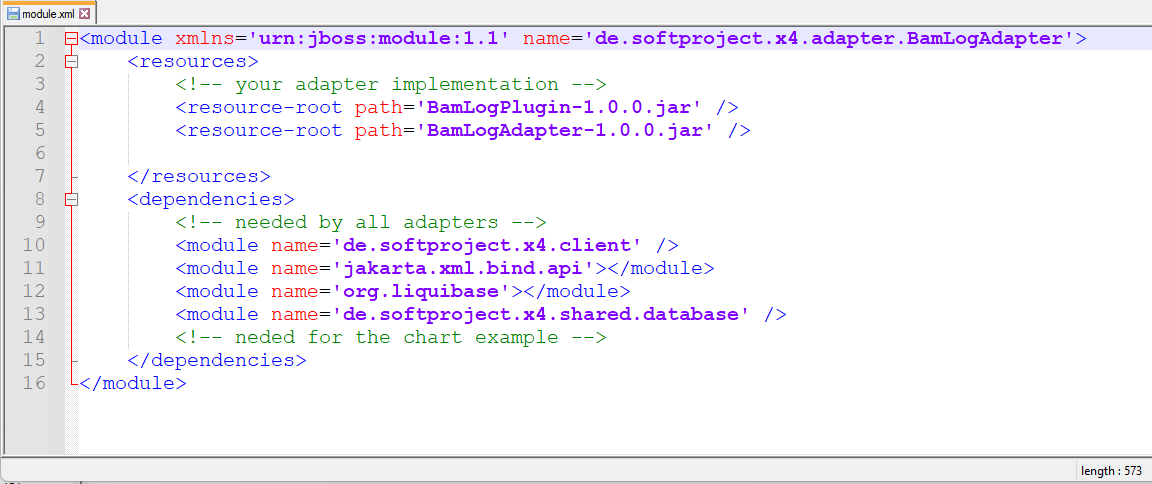

   2. Content of the module.xml file:



4. Add the adapter name to the module.xml file in the folder  <server_directory>\wildfly\modules\de\softproject\plugins\main:

   1. Open the module.xml file in the folder <server_directory>\wildfly\modules\de\softproject\plugins\main.

   2. Cope the adapter name into the <dependencies> tag:

      <module name="de.softproject.x4.adapter.<name of the adapter>" export="true"/>

   3. Save the module.xml file.

5. Start Keycloak, the X4 Server and the X4 Designer.

The adapter can now be selected and used in the X4 Designer.
