Connecting your own Keycloak installation

If the included Keycloak installation is to be replaced by your own Keycloak installation, a Keycloak configuration file must be created in the server directory under \configuration\keycloak_config.json.

The configuration is done in the connection element.

Example

CODE

{
    "connection": {
        "realm": "X4Realm",
        "auth-server-url": "http://<host>:<port>/auth/",
        "resource": "X4",
        "credentials": {
            "secret": "XXXX"
        }
    }
}

The following roles must be created in Keycloak:

Role	Description
x4_admin_access	Gives access to the X4 ReST API.
x4_control_center	Gives access to the X4 Control Center (in future).
x4_dev_access	Gives access to the X4 Designer.
x4_dev_access_*	Gives access to all X4 Repositories.

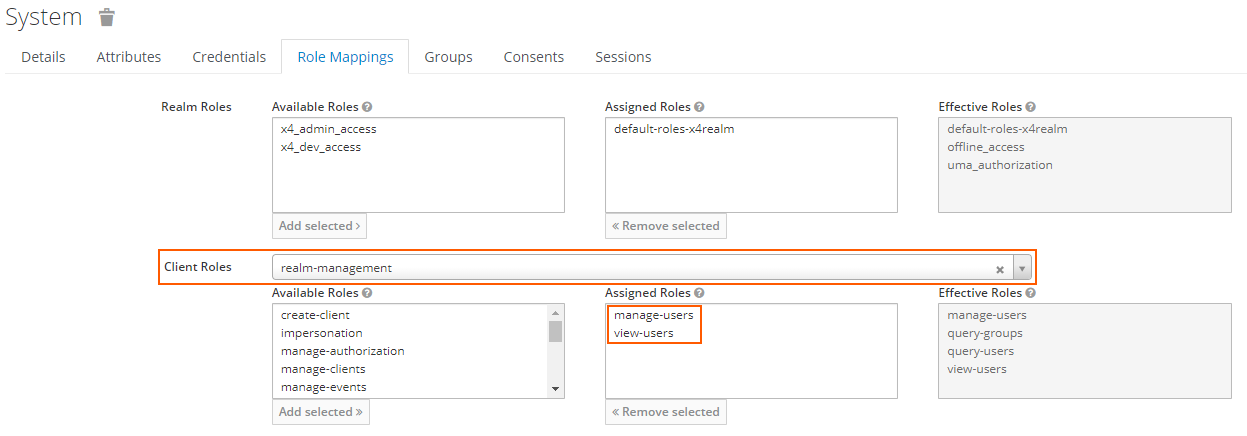

To use the X4 ReST API, the following rights must be granted to the corresponding user:

Client Roles	realm-management
Assigned Roles	manage-users view-users

For more information on the configuration file, see https://www.keycloak.org/docs/latest/securing_apps/index.html#_java_adapter_config.
